Matek F405-MINI FC and FCHUB-A5 PDB

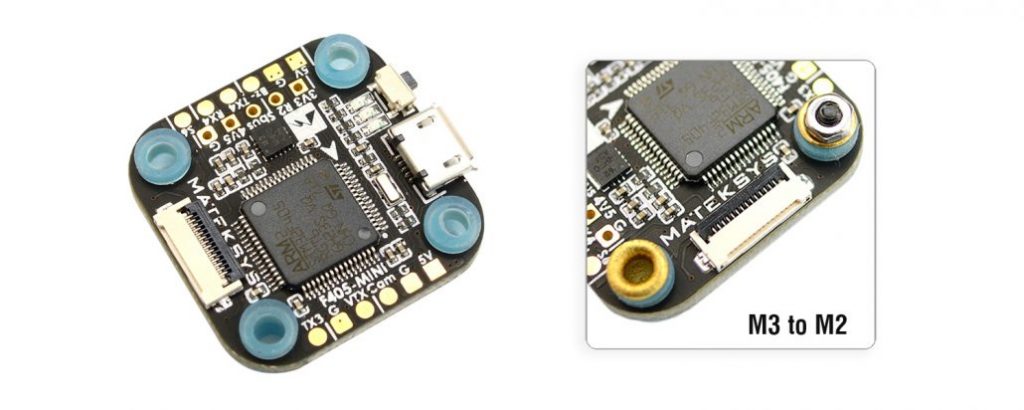

Mateksys released their new mini size flight controller F405-MINI and a dedicated PDB FCHUB-A5. Flight controller mounting size is 20x20mm while PDB has holes for 20x20mm and 30.5×30.5mm, therefore it is bigger. FC has F405 MCU and fast ICM-20602 gyro, capable to run on 32kHz. FC has pads broken out for smart audio and camera control. Board has rubber grommets installed for soft mountig with 3mm and 2mm screws (with supplied adapters). Flight controller FC405-MINI can be connected with FCHUB-A5 via flat ribbon cable, thus minimizing the cable quantint and simplyfying the build process. FCHUB-A5 is capable to supply 4x35A (4x46A burst) max current to ESC’s. PDB has 5V 2A BEC and 184A current sensor. This PDB was designed to be ready for BLHeli_32 ESC’s with telemetry – there are additional Telemetry pads (marked as ESC TLM).

Great combo for mini brushless builds.





Listed @ Banggood: https://www.banggood.com/Matek-Systems-F4-F405-Mini-Flight-Controller-Integrated-OSD-32K-Gyro-32M-Flash-20x20mm-p-1214331.html

Description:
Item name: F405 Mini Flight Controller
MCU: 168MHz STM32F405
IMU: 32K ICM20602 accelerometer/gyro (SPI)
Support 32K Gyro update & 16K PID Loop
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: 32M(256) Flash
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial & Camera control supported on S5 & S6
Battery Voltage Sensor: 1:10
Current Sensor: No (FCHUB-A5 option)
BEC 5V: No (FCHUB-A5 option)
LDO 3.3V: Max.300mA for Spektrum RX
I2C1 SDA & SCL available
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
2x LEDs for FC STATUS (Blue, Red)
6x PWM / DShot outputs without conflict
5x UARTs
1x 14pin top mounted FFC Slot for FCHUB-A5 connection
28x28mm PCB with 20mm mounting holes
w/ 6x silicon grommets M4 to M3
w/ 6x brass grommets M3 to M2
w/ 2x 0.5mm*14Pin 3cm Flexible Flat Cable
MatekF405 Target
Firmware based on OpenSource BetaFlight
