BetaFPV Silverware Light V2 Brushed FC

Good news for those who fly brushed whoops – BetaFPV has updated the Silverware Light Brushed V2 flight controller. The changes list:

  • Integrated 25mW VTX, support change VTX channel via control.
  • Add LiteOSD information and OSD Menu.
  • Support firmware upgrade in DFU mode via USB port.
  • Integrate an altitude sensor (altitude hold function is NOT available now).
  • 2 RGB LEDs

For those who is not familiar with Silverware – it is alternative firmware for brushed and brushless quadcopters. It runs on the relatively simple and cheap hardware but has a reputation of the extremely good flight performance.

Available @ BetaFPVhttps://betafpv.com/collections/brushed-flight-controller/products/betafpv-lite-brushed-flight-controller

Specifications

  • CPU: STM32F030
  • Six-Axis: MPU6050
  • ESC: All FETs are rated at 6.3A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
  • Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
  • Firmware version: Silverware firmware
  • Receiver: Bayang protocol + SBUS input
  • Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector

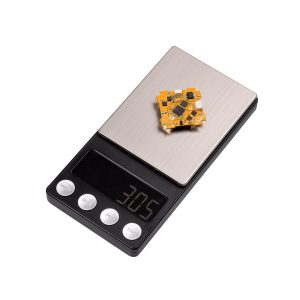

  • Weight: 3.05
