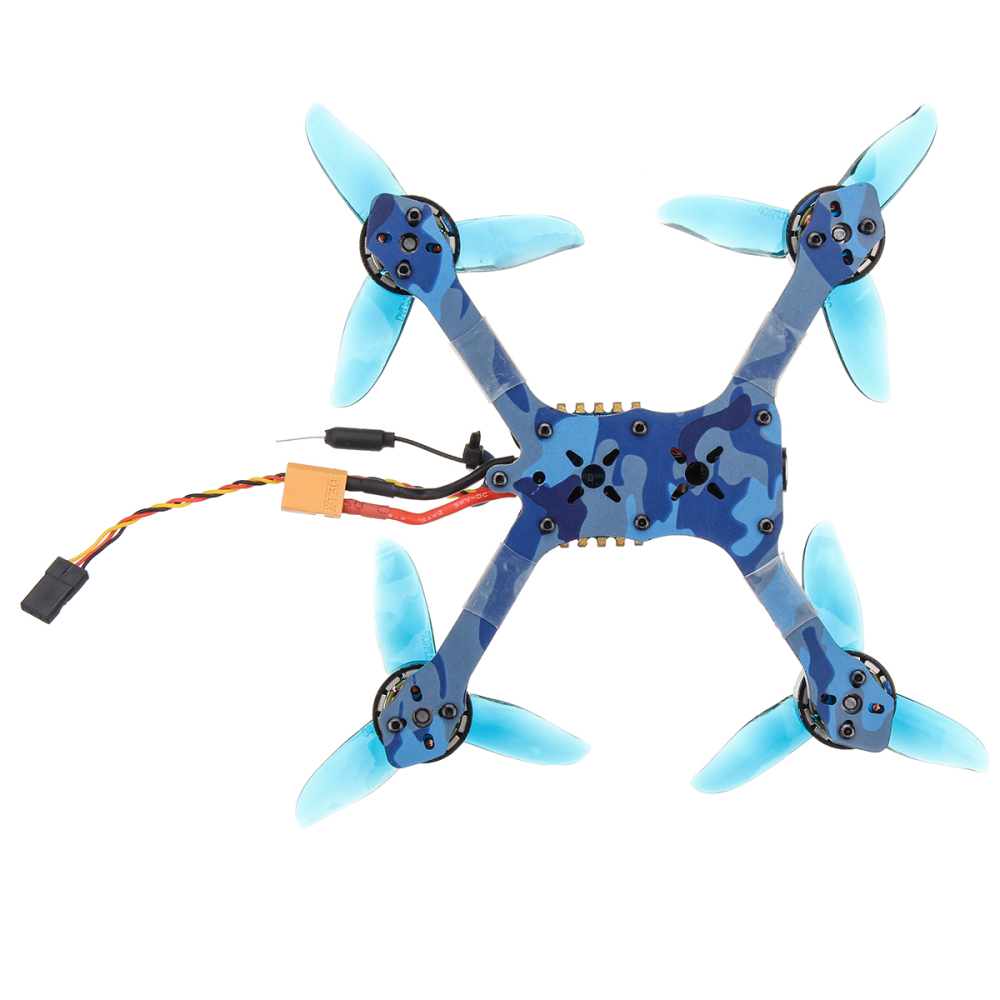

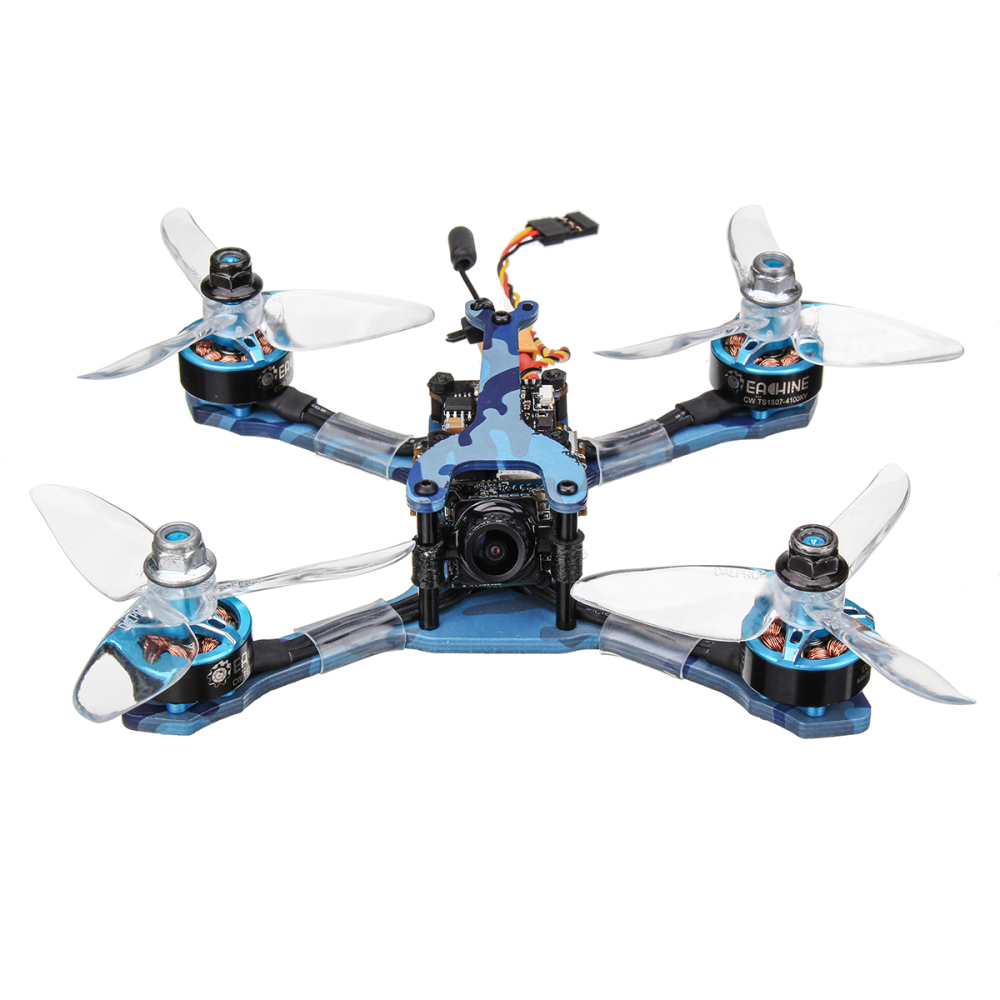

Eachine Wizard TS130 quadcopter

Eachine released the Wizard TS130 quadcopter. It is 3″ inch, 130mm sized quadcopter and looks like shrinked Wizard TS215. Its power train is 4ni1 BLHeli_S ESC with 20A constant and 25A burst current and a new 1507 4100KV motors. Wizzard TS130 comes with 2 sets of agressive pitch 3056 propellers. The heart of the quad is the F405 Omnibus flight controller with the MPU6000 gyro, connected via fast SPI interface. On top of the stack there is adjustable 25/100/200mw power VTX with smart audio feature.

It was realy good decision to dump those cheap CMOS cameras and install the really good and proven Foxeer Arrow Micro Pro camera.

Quadcopter comes in PNP configuration, without the receiver. You’ll have to install it by yourself. There is dedicated cable for receiver to connect it via PPM/SBUS.

Eachine Wizard TS130 is rated for 2S-4S batteries, but the FC is rated from 3S only. Probably nobody will be flying it with 2S batteries.

Read the review of the Wiazrd TS130 here.

Available @ Banggood: https://www.banggood.com/Eachine-Wizard-TS130-…-1356738.html

Specifications:
Wheelbase: 130mm
Material: 3K carbon fiber
Top plate thickness: 2mm
Bottom plate thickness: 3mm
Artist: hydrographics transfer printing

20A 4in1 Brushless ESC

Continuous current: 20A
Peak current (5S): 25A
Input voltage: 2-4S
Supports Dshot600, Dshot300, Dshot150
Size: 27x27mm
Weight: 3.3g

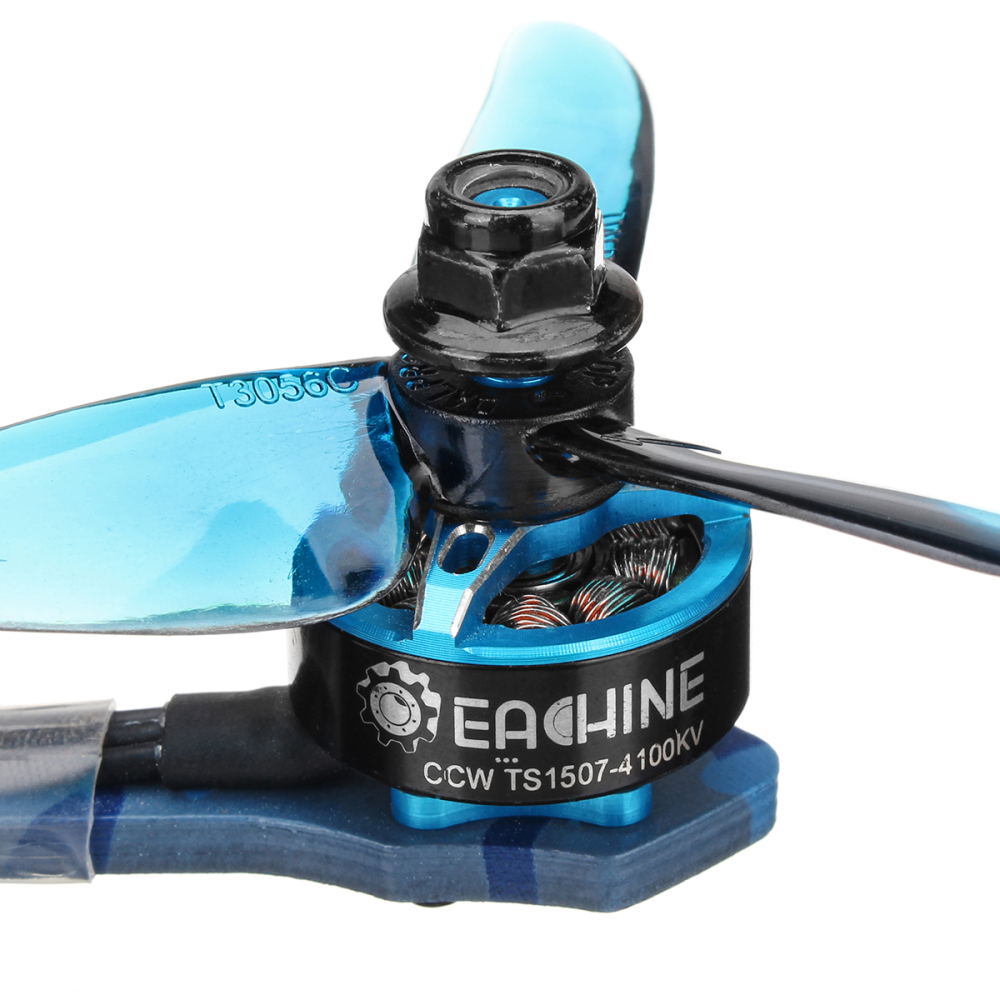

TS1507 4100KV Brushless Motor

KV: 4100
NO.OF cell: 2-4S

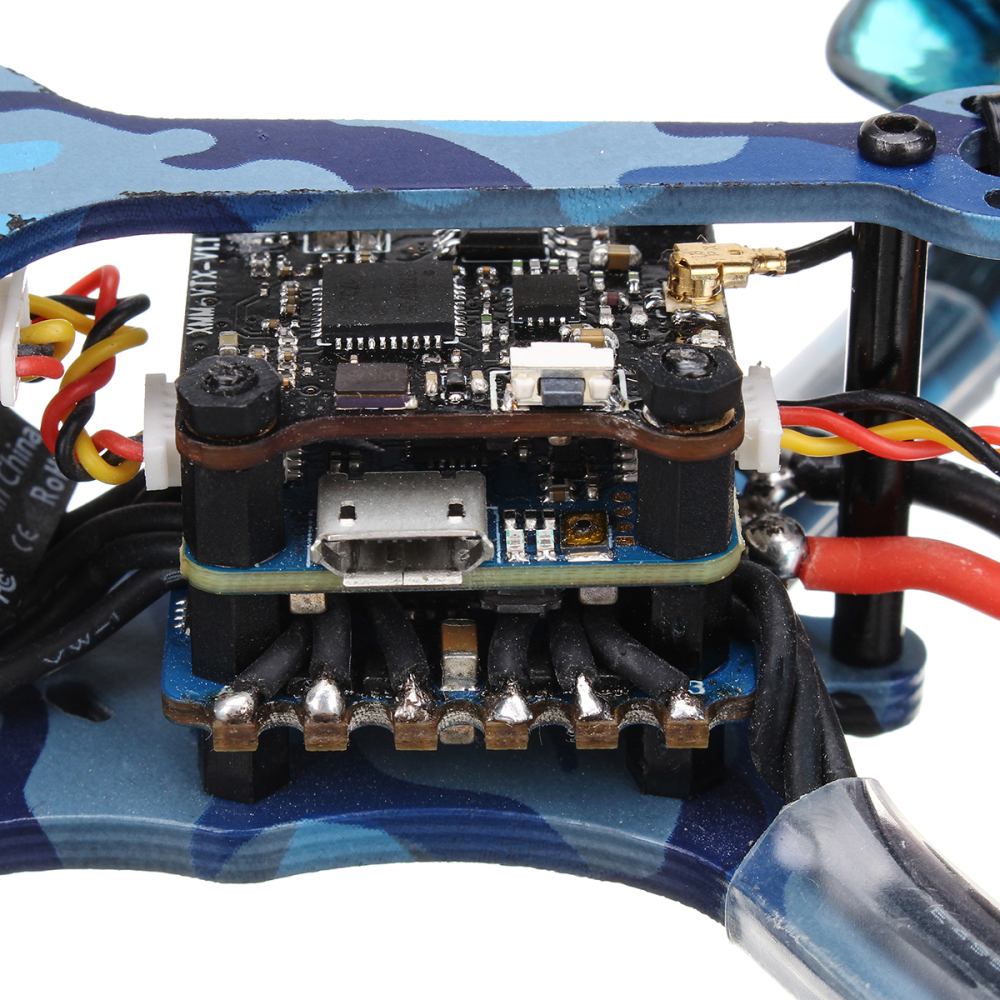

Omnibus F4 Flight Controller

CPU: F4STM32 F405 SCM
Input voltage: 3-4S
Sensor: MPU6000 SPI
Built in OSD
Built in 5V 2A BEC
Size: 25x25mm
Weight: 2.3g

5.8G 40CH VTX

Input voltage: 7-24V
Dimensions: 20x20mm
Size: 27mm×27mm×4.5mm
Adjustable 25mw / 100mw / 200mw
Supports smart audio (remote OSD parameter adjustment)

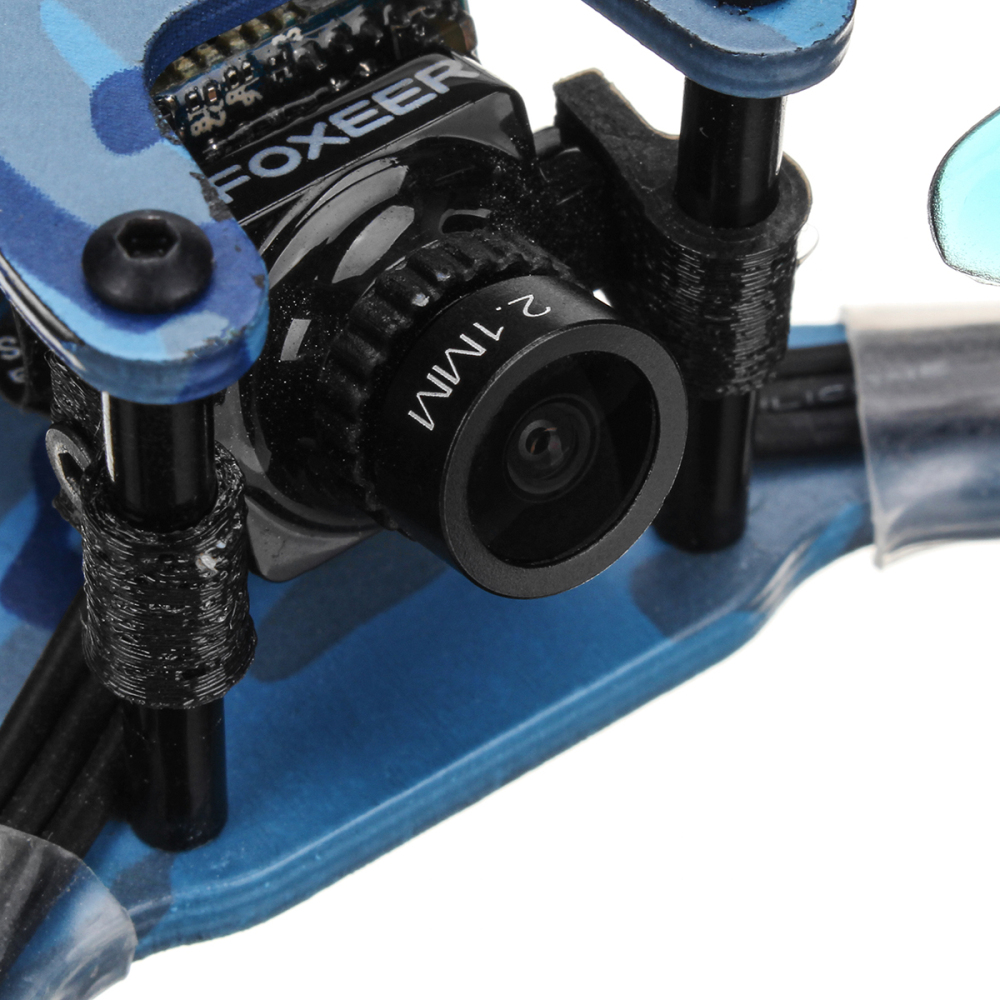

FOXEER Arrow MICRO PRO Camera
Sensor: 1/3” Sony SUPER HAD II CCD+Nextchip 2040 DSP
Pixel:PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
TV System: PAL/NTSC (based on country)
Resolution: 600TVL(color) 650TVL(B&W)
Min. Illumination: 0.01Lux
WDR: support
OSD programming board: support
DNR: 2D DNR
Camera Title: support
OSD: Edit Name, Power, Flying time
Input Power: 5-40V
Power Consumption: 70mA
Low voltage alarm: Support
Preset mode: DEF, VIVID, SUNNY, CLOUDY,LED TR,USR1
Size: 18.5*19mm (bracket excluded)
Weight: 5.3g (bracket excluded)
