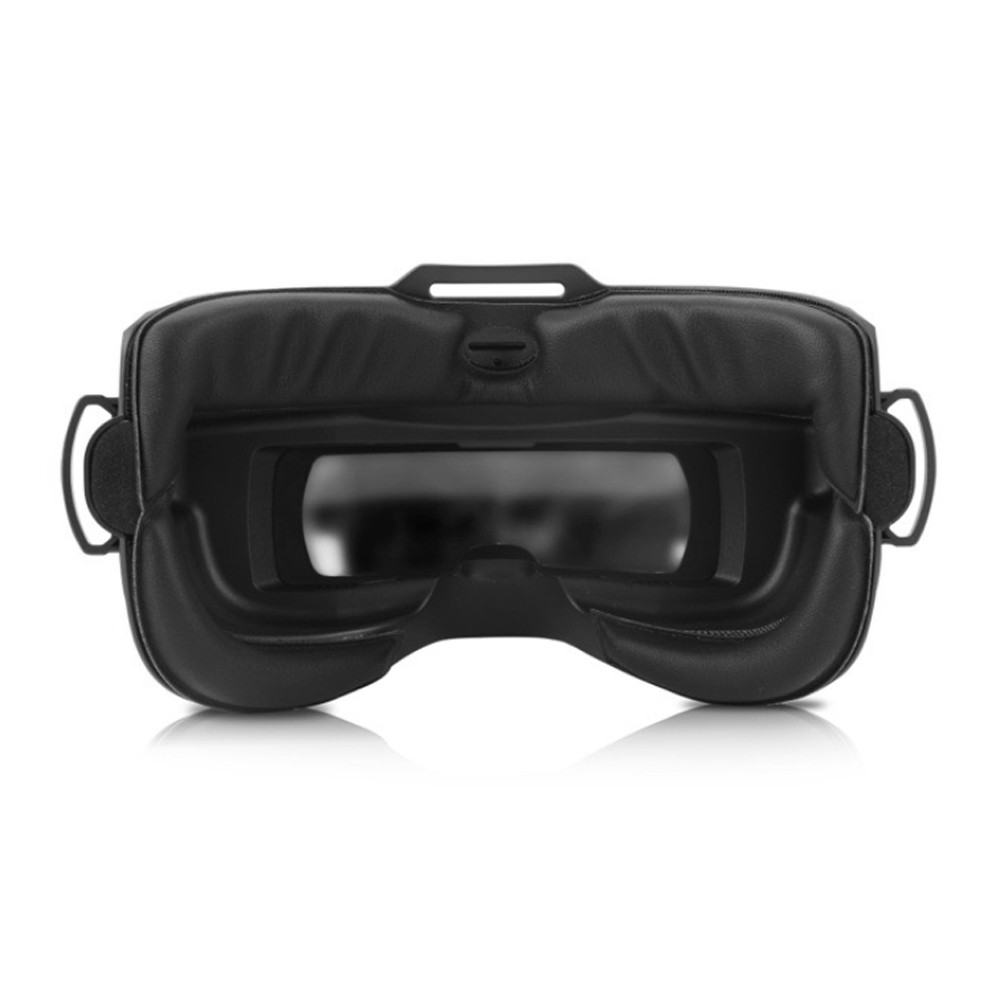

FatShark Scout HD goggles with Shark Byte

The FatShark Scout HD goggles are the first Fat Shark’s HD digital FPV goggles. Image quality is achieved with a 1080p display viewed through Fat Shark’s patented folded optical engine. The 3.5” LCD panel delivers a 44-degree FOV image at 60 fps with compatibility with Shark Byte transmitters. FatShark Scout HD is made on the base of already proven FatShark Scout analog goggles. The digital version is the whole new level of the image quality.

FatShark Scout HD goggles does not have any AV or HDMI input. You cannot use them for analog FPV as they are designed to work only with Shark Byte digital FPV system.

Scout HD goggles have Firmware update port. Rumors say, that a firmware update with brightness, contrast, and hue adjustments will be added in the future.

FatShark Scout HD are the cheapest ready to use digital FPV goggles on the market currently.

FatShark Scout HD are compatible with Shark Byte Digital FPV video transmitters. There are 3 transmitters available currently: https://www.getfpv.com/catalogsearch/result/?q=SharkByte

Released on 2021-08

Available @ GetFPVhttps://www.getfpv.com/fat-shark-scout-hd-fpv-goggles-w-integrated-digital-receiver.html

Banggood: https://www.banggood.com/Fat-Shark-Scout-HD-PVT-FPV-Goggles-…-1881764.html

Features

  • Ergonomically molded headset w/ adjustable headband
  • Shark Byte Tx upgrade port
  • 44 degrees diagonal FOV
  • 3-Button OSD Navigation
  • Integrated digital receiver
  • Anti-fog fan

Specifications

  • Power Supply: 5.1mm Barrel Connector, 8-16V (2s – 4s) Center Pin Positive
  • Interpapillary Distance (IPD): 55 to 76 mm (fixed)
  • Operating Frequencies: 5.725-5.850GHz
  • FOV (field of view): 44 degrees diagonal
  • Interface: Shark Byte Tx upgrade port
  • Display: 3.5 inch TFT (1920 X 1080)
  • Controls: 3 button OSD navigation
  • Dimensions: 170 x 120 x 90mm
  • Upgradeable via SD card
  • Charging Port: USB-C
  • Storage: MicroSD
  • Weight: 336.5 g
