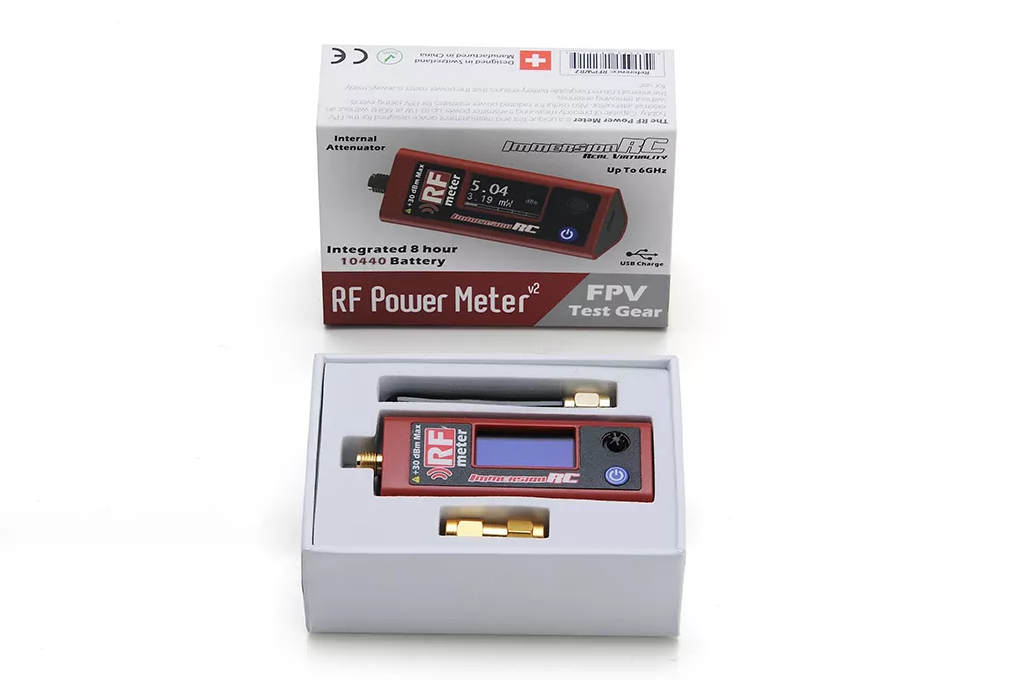

ImmersionRC RF Power Meter V2 released

Second version of the well known ImmersionRC Power Meter was announced! Improved, compact and at half of the price!

Various measurement modes – average, peak or packet signal measurements. New Power Meter V2 has internal 30dB attenuator. It has even built in recheargeable battery.

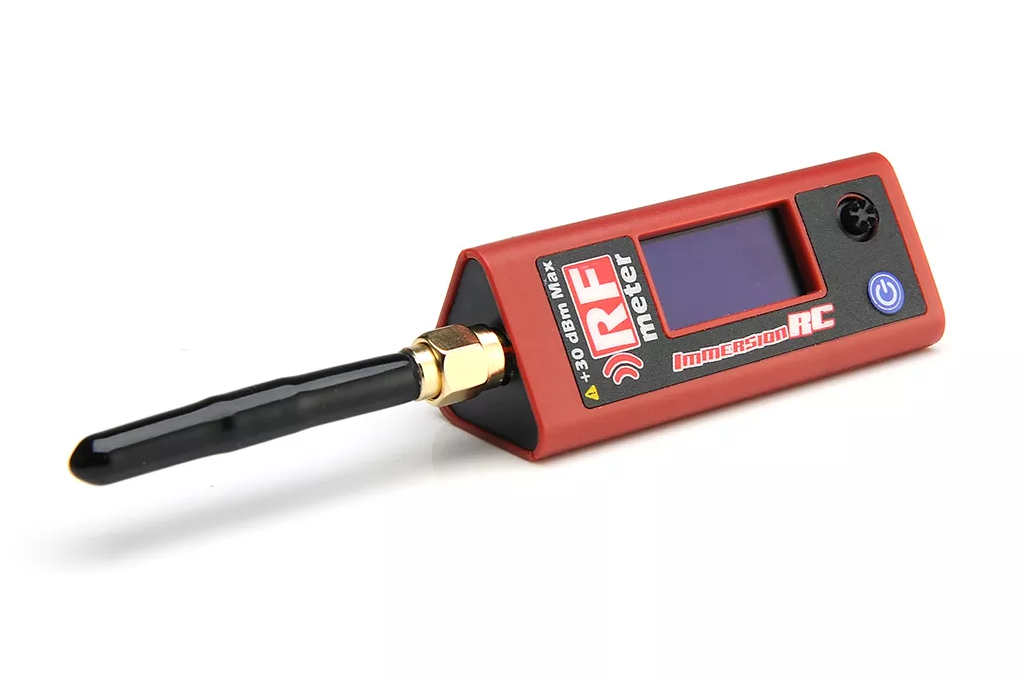

With the included stubby dipole, the RF Power Meter v2 can be used to perform a rough power test on any video transmitter, even without unscrewing it’s antenna. You can the test for accidentally set on high power, or those with hardware/cable/connector/antenna problems emitting a few micro-watts are identified before the first gate.

A must have tool for every FPV professional.

RF Power Meter v2 has PowerScope mode that draws a visual representation of the power being emitted from your radio.

Power meter shows peak, average and  packet data signal strenth. Also a duty cycle and packet intervals.

Inside there is a rechargeable lithium battery that provides up to 8 hours of powering the device. Can be recharged by simple mirco USB cable.



Can be purchased @ Banggood: https://www.banggood.com/ImmersionRC-RF-Power-Meter-v2-…-1271734.html

ImmersionRC RF Power Meter V2 User Manual: https://docs.google.com/document/d/1MHtkZg81mqF2xibuO7tHb-OH-l9ib3NImpGnRQWFtBo/edit



Specifications
Price: 79 USD
Power Level: -20dBm up to +30dBm
Calibrated Frequencies: 35, 72, 433, 1200, 2400, 5600-6000MHz in 50MHz steps
Accuracy: +/- 0.5dB
Attenuator: 30dB (Internal)
Battery: 3.7V Lithium Ion cell, 10440 size, 600mAh
Current Consumption: ~35mA
Battery Life: ~8 hours
Auto Shutdown: 5 minute timeout
Charging: Micro USB cable
Display: OLED, 128×64 pixels, monochrome
User Input: Joystick
Interfaces: USB, power control via CDC
Antenna: 5.8GHz ‘Sniffer Antenna’ (linearly polarized ~2dBi dipole)
Adapter: Male to Male SMA adapter
