IRangeX IRX4 LITE – Multiprotocol for X-Lite

Banggood has listed new multiprotocol TX module – IRangeX IRX4 Lite. This module is specifically designed for FrSky Taranis X-Lite transmitter. This module similar to Vantac MPM Lite multiprotocol module from the FrSky. Both have support for the same protocols, both are controlled by the STM32 MCU and both have the USB port for firmware updates. Probably the main difference is the manufacturer and the price. IRangeX IRX4 multiprotocol module is about 10% cheaper than Vantac (FrSky) MPM Lite version.

Listed @ Banggood:

https://www.banggood.com/IRangeX-IRX4-LITE-CC2500-NRF24L01-A7105-CYRF6936-4-IN-1-Multiprotocol-TX-Module-for-Frsky-X-lite-p-1346927.html

Specification:
Brand name: IRangeX
Operating voltage:5-9V
Operating current: <=180mA
Operating frequency: 2.4G ISM band
RF power: +22dBm
MCU: STM32F103CBT6(128K ROM, 20K RAM)
Weight: 32g

Overview:

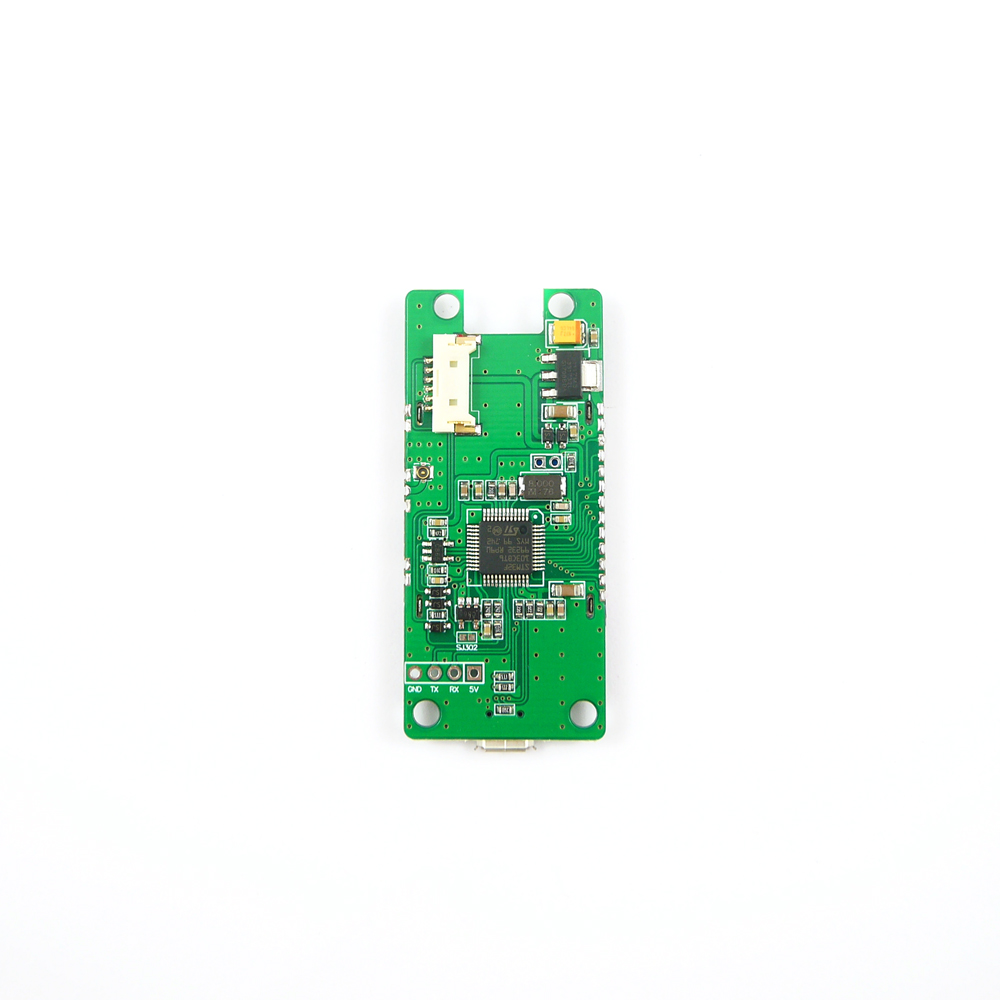

This 4-in-1 TX  module is suitable for FRSKY X-Lite. It integrates four RF chips (CC2500,NRF24L01+,A7105,CYRF6936) into one single circuit board, it supports a variety of remote control protocols, such as Futaba S-FHSS, Walkera DEVO, Spektrum DSM2, DSMX, Flysky, Frsky, WLToys, Hubsan, Hisky, Esky , Assan etc. You can control your model flexibility with it, and you will get much excellent experience with you favorite transmitter.
This module is compatible with the Multi-module project on github. It’s based on STM32 microcontroller. All available protocols are included in serial mode. In this mode, it uses a serial protocol to communicate with your transmitter. The serial protocol does not require any hardware modifications, but you should update the firmware on your transmitter to the latest. Then the model protocol selection and binding is done from the Model Settings menu on your transmitter. For telemetry capable transmitters, the telemetry integration is done seamlessly with the transmitter firmware.

How to use:
1. Refer to the website above, update your transmitter with proper firmware.
2. Screw down the antenna of module tightly, and then install TX Module to the module bay of your transmitter.
3. Power on your transmitter, enter Model Settings menu, turn on External RF , and select ‘MULT’ mode, then you will see the bind and protocol button in the menu, and then you can choose a proper protocol for you model and bind with it now.

LED State:

Green Led Red Led Status
OFF Flashing raipidly Bootloader is running, please wait
ON ON Normal or Range Check
ON Flashing slowly No serial input
ON Flashing raipidly Binding


Notice:
1. Make sure to check the ‘multimodule’ option, when you update OpenTX firmware through Companion software.
2. In serial mode, for FRSKY and S-FHSS protocol, you may need set the value of Fine or Option (in Model Settings menu on your TX) properly to bind with your model. The value can be varied, since it’s partly depended on your model.

Available protocols (incomplete and expanding)

NO. Protocol Sub_protocol RF Chip
1 FLYSKY FLYSKY  V9X9  V6X6   V912   CX20 A7105
2 AFHDS2A PWM   PPM  IBUS  SBUS A7105
3 HUBSAN NONE A7105
4 FRSKYV NONE CC2500
5 FRSKYD NONE CC2500
6 FRSKYX CH_8  CH_16  EU_8  EU_16 CC2500
7 S-FHSS NONE CC2500
8 DSM DSM2_11  DSM2_22  DSMX_11  DSMX_22 CYRF6936
9 DEVO NONE CYRF6936
10 WK2X01 WK2801  WK2401 CYRF6936
11 J6PRO NONE CYRF6936
12 ESKY NONE NRF24L01+
13 HISKY HISKY  HK310 NRF24L01+
14 KN WLTOYS  FEILUN NRF24L01+
15 V2X2 V2X2  JXD506 NRF24L01+
16 ASSAN NONE NRF24L01+
17 MJXQ WLH08  X600  X800  H26D E010  H26WH NRF24L01+
18 YD717 YD717  SKYWLKR SYMAX4 XINXUN NIHUI NRF24L01+
19 SYMAX SYMAX  SYMAX5C NRF24L01+
20 SLT SLT  VISTA NRF24L01+
21 CX10 GREEN _BLUE  DM007 JC3015  MK33041 NRF24L01+
22 CG023 CG023  YD829  H8_3D NRF24L01+
23 BAYANG BAYANG  H8S3D NRF24L01+
24 MT99XX MT99  H7  YZ  LS  FY805 NRF24L01+
25 SHENQI NONE NRF24L01+
26 FY326 FY326  FY319 NRF24L01+
27 FQ777 NONE NRF24L01+
28 HONTAI HONTAI  JJRCX1  X5C1  FQ777_951 NRF24L01+
29 Q2X2 Q222  Q242  Q282 NRF24L01+
30 Q303 Q303  CX35  CX10D  CX10WD NRF24L01+
31 GW008 NONE NRF24L01+
32 DM002 NONE NRF24L01+
33 ESKY150 NONE NRF24L01+
34 CORONA COR_V1  COR_V2  FD_V3 CC2500
