Kingkong Tiny 6 and Tiny 7 micro brushed tiny whoops

Kingkong introduced their version of tiny whoops – Tiny 6 and Tiny 7. Tiny 6 is 65mm sized and has 6x15mm motors while Tiny 7 is 75mm sized with 7x20mm motors. Canopy looks similar to Blade inductrix. Comes with 3 types of receivers: AC800, Flysky and DSM2 Receiver. All versions of Kinkong Tiny has 800TVL CMOS mini camera with 25mW/16CH video transmitter.

Tiny 6 pictures:

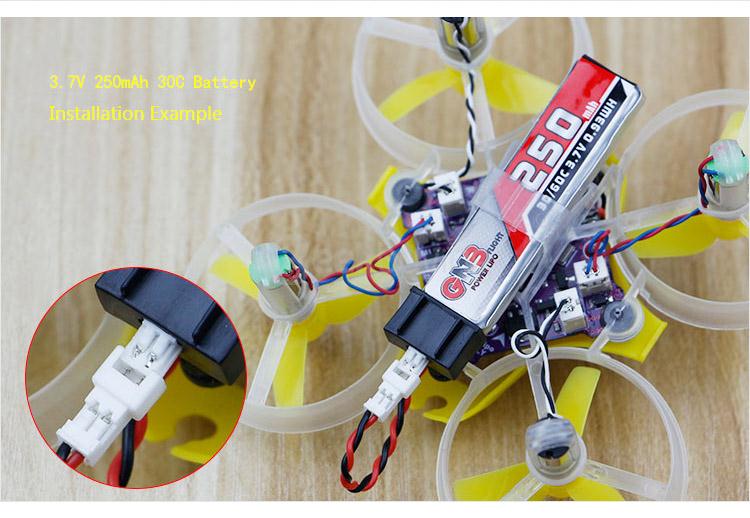

Good news – there is special version with 5-way charger (XT-60 socket as power source) and 5 pcs of 3.7V 250mAh 30C Battery in Advanced combo version. I strongly advise to purchase this combo as it gives so much addidional value for just a few bucks.

Tiny 7 pictures

EDIT (2017-03-09): First video on Youtube.  Just a teaser, no details.

EDIT (2017-03-16) Basic version package contents video:

Can be purchased @ Banggood:

Tiny 6 Basic and Advanced version: http://www.banggood.com/KINGKONG-TINY6-65mm-Micro-FPV-Quacopter-With-615-Brushed-Motors-Baced-on-F3-Brush-Flight-Controller-p-1134635.html

Tiny 7 Basic and Advanced version: http://www.banggood.com/KINGKONG-TINY7-75mm-Micro-FPV-Quacopter-With-720-Brushed-Motors-Baced-on-F3-Brush-Flight-Controller-p-1134636.html



Also @ Geekbuying:

Tiny 6 Advanced Combo version: http://www.geekbuying.com/item/KINGKONG-Tiny-6-65mm-Micro-FPV-Racing-Quacopter-Advanced-Combo-Yellow-376844.html

Tiny 7 Advanced Combo version: http://www.geekbuying.com/item/KINGKONG-Tiny-7-75mm-Micro-FPV-Racing-Quacopter-Advanced-Combo-Yellow-376845.html

Tiny 7 Bacis version: where?

Tiny 7 Basic version: http://www.geekbuying.com/item/KINGKONG-Tiny-7-Micro-FPV-Racing-Quacopter-Flysky-Receiver-Yellow-376872.html



Specification Tiny 6

Brand:KINGKONG
Item Name: Tiny 6
Wheelbase: 65mm
Propeller: 31mm 3-Blade
Weight: 18.9g(Battery Not Included)
Flight Controller: Micro F3(Betaflight) Brush
VTX: 25mW/16CH
Camera: 800TVL
FOV:150°
Motor:615 Brushed
Battery: 3.7V 250mAh 30C
Charger: 200mA/500mA (Switchable 1s Five-way Charger USB Or 2~6s Lipo Powered)

Frequency table:

5658Mhz  5806Mhz  5705Mhz  5790Mhz
5695Mhz  5843Mhz  5740Mhz  5820Mhz
5732Mhz  5880Mhz  5760Mhz  5860Mhz
5769Mhz  5917Mhz  5780Mhz  5945Mhz

Recommended receive: DSM2 (JR,Walkera,Spektrum)
PPM   Flysky FS-RX-2A(Flysky FS-I6,FS-I6X,FS-I6S,FS-TM8,FS-TM10,FS-I10)
AC800 Frsky D8R (Frsky X9D X9E X12S)
FM800 Futaba Fasst

Contents Tiny 6 Advanced version

1 X Frame kit
4 X Canopy(Yellow/Red/White/Pink)
4 X Propeller Sets
1 X 800TVL Camera
1 X F3 FC + VTX + Brushed ESC All In One PCB
5 X 3.7V 250mAh 30C Battery
4 X 615 Motor
1 X Five-way Charger
1 X Wrench



Description Tiny 7

Brand:KINGKONG
Item Name: Tiny 7
Wheelbase: 75mm
Weight: 32.4g(Battery Not Included)
Propeller: 40mm 3-Blade
Flight Controller: Micro F3(Betaflight) Brush
VTX: 25mW/16CH
Camera: 800TVL
FOV:150°
Motor:720 Brushed
Battery: 3.7V 500mAh 30C
Charger: 200mA/500mA (Switchable 1s Five-way Charger USB Or 2~6s Lipo Powered)
Frequency table:

5658Mhz  5806Mhz  5705Mhz  5790Mhz
5695Mhz  5843Mhz  5740Mhz  5820Mhz
5732Mhz  5880Mhz  5760Mhz  5860Mhz
5769Mhz  5917Mhz  5780Mhz  5945Mhz

Recommended receive: DSM2 (JR,Walkera,Spektrum)
PPM   Flysky FS-RX-2A(Flysky FS-I6,FS-I6X,FS-I6S,FS-TM8,FS-TM10,FS-I10)
AC800 Frsky D8R (Frsky X9D X9E X12S)
FM800 Futaba Fasst

Contents Tiny 7

1 X Frame kit
4 X Canopy(Yellow/Red/White/Pink)
4 X Propeller Sets
1 X 800TVL Camera
1 X F3 FC + VTX + Brushed ESC All In One PCB
5 X 3.7V 500mAh 30C Battery
4 X 720 Motor
1 X Five-way Charger
1 X Wrench
