List of ExpressLRS hardware – Transmitters and Receivers

This is the list of the ExpressLRS hardware – receivers and transmitters. You can find the brief description, main specifications and links to the sellers.

The list is in the order of the appearance in the market. If I’ve missed something, or maybe you didn’t find what you were searching for, please write it in the comments.

I hope this list will help you find the best ExpressLRS hardware that fits your needs.

Page Contents for List of ExpressLRS hardware – Transmitters and Receivers

ExpressLRS Transmitters and Receivers

Happymodel ES24TX and EX900TX radio transmitter modules

These are the first ExpressLRS transmitters in the market manufactured by Happymodel. ES24TX is 2.4GHz band ExpressLRS transmitter and ES900TX is for 900MHz band. ES900TX module is capable up to 1W of the output power and comes with a 2006 sized cooling Fan, which turns on automatically when the TX power is 250mW and more. The ES24TX module is capable of outputting up to 250mW of the RF power.

Downsides – USB connector is internal and you need to open the case to access it.

Banggood: 2.4GHz – https://www.banggood.com/Happymodel-ES24TX-2_4GHz-ExpressLRS-TX-Module

915MHz – https://www.banggood.com/Happymodel-ExpressLRS-ES900TX-915MHz-Ultra-Long-Range-Transmitter-Module

868MHz – https://www.banggood.com/Happymodel-ExpressLRS-ES900TX-868MHz-Ultra-Long-Range-Transmitter-Module

ES900TX: Specifications:
MCU: ESP32+ESP8285
Dimension: 55mm*39mm*11mm
Weight: 9.2gram (only the TX module)
Antenna connector: SMA
VCC input: 5~13v, Recommend 5v~9v
Minimum receiver refresh rate: 25Hz
Maximum receive refresh rate: 250Hz
RF Frequency optional: 915MHz or 868MHz (EU) (antenna is different size)
Maximum Output Power: <33dBm (For >27dBm operation, we recommend add a fan for force cooling) (actually up to 1W)

ES900TX Specifications:
Regulatory Domain: ISM2400
MCU: ESP32 (main), ESP8285 (aux,as espbackpack)
RF chip: SX1280IMLTRT
JR standard 5pin socket
Antenna connector: SMA
Frequency Range: 2400 MHz to 2500 MHz
Minimum receiver refresh rate: 50Hz
Maximum receive refresh rate: 500Hz
RF Output Power: 10dBm~24dBm (250mW)
Power supply voltage: 5v~10v
Weight: 9.5 gram(without antenna)
Dimension: 55.5mm*39.5mm*8mm
Antenna gain: 1.87dBi

Happymodel ES24TX Pro radio transmitter module

Updated Happymodel ES24TX module with up to 1W of transmitting power. It has heatsink, cooling fan and RBG led. However USB connector still cannot be accessed from outside. Has additional ESP chip for backpack functions (telemetry relay, etc).

Banggood: https://www.banggood.com/HappyModel-ES24TX-Pro-2_4GHz-1000mW-ExpressLRS-ELRS-Micro-TX-…-1913831.html

Specifications:
Name: Happymodel ES24TX Pro Micro TX Module
Regulatory Domain: ISM2400
MCU: ESP32 (main), ESP8285 (aux, as esp backpack)
RF chip: SX1281IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 50Hz
RF Output Power: >30dBm
Power supply voltage: 5v~10v
Weight: 51gram (without antenna)
Dimension: 70*49*32.5 mm
Antenna gain: 4.18dBi
Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

Happymodel ES24TX Slim Pro TX radio transmitter module

Happymodel ES24TX Slim Pro is the JR Lite type ExpressLRS module. Fits TBS Tango, FrSky X-Lite and other “Lite” module bay transmitters. It has all metal case, acting as a cooling heatsink and a fan, starting to blow at the 250mW.  is capable of delivering 1W of the RF power. It is the most powerful 2.4GHz ExpressLRS transmitter module in the market.

The first batch of the ES24TX Slim Pro had the Telemetry Lost issues. This could be fixed by some soldering and changing the components on the mainboard. Happymodel offers free repair service as well. All the modules, shipped after the 2021-09 should not have this issue.

Banggoodhttps://www.banggood.com/Happymodel-ES24TX-Slim-Pro-2_4GHz-ExpressLRS-ELRS-Up-To-1000mW-RF-Power-Micro-TX-Module.html

ES24TX Slim Pro specifications:
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(as ESP backpack)
RF chip: SX1280IMLTRT
Frsky Lite 8pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 50Hz
RF Output Power: ≤30dBm (1 W)
Power supply voltage: 5v~12v
Weight: 50gram (without antenna)
Dimension: 67.5mm*30mm*20.5mm (without antenna)
Antenna gain: 1.87dBi

BetaFPV Nano TX radio transmitter modules

BetaFPV ExpressLRS Nano TX modules are JR Lite size. They are capable of outputting up to 500mW of RF power. Nano TX module comes in fancy snow white color. You can choose between the FCC (/EU (

Read the full review here: Review: BetaFPV ExpressLRS 2.4GHz system

BetaFPVhttps://betafpv.com/collections/expresslrs-series/products/elrs-nano-tx-module

Banggood: 2.4GHz – https://www.banggood.com/BETAFPV-ExpressLRS-2_4GHz-Nano-Long-Range-Micro-TX-Module

  900MHz – https://www.banggood.com/BETAFPV-ExpressLRS-868-or-915MHz-Nano-Long-Range-Micro-TX-Module

Specifications:
Packet refresh rate: 25Hz/50Hz/100Hz/200Hz (915MHz/868MHz)
50Hz/150Hz/250Hz/500Hz (2.4GHz)
RF output power: 100mW/250mW/500mW
Frequency bands (Nano RF Module 2.4G version): 2.4GHz ISM
Frequency bands (Nano RF Module 915MHz/868MHz version): 915MHz FCC/868MHz EU
Input voltage: 5V~12V
USB port: Type-C

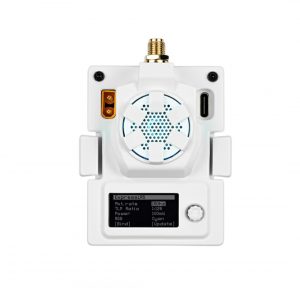

BetaFPV Micro TX radio transmitter modules

BetaFPV ExpressLRS Micro TX modules are full size (or so called micro) JR type. BetaFPV Micro TX module has OLED screen and 5-way menu navigation joystick. They are capable of outputting up to 500mW of RF power. Module available in FCC (/EU (

Read the full review here: Review: BetaFPV ELRS Micro TX module

BetaFPVhttps://betafpv.com/products/elrs-micro-tx-module

Banggood: https://www.banggood.com/BETAFPV-ExpressLRS-ELRS-…-Micro-TX-Module-…-1912251.html

Specifications:
Packet refresh rate: 25Hz/50Hz/100Hz/200Hz (915MHz/868MHz), 50Hz/150Hz/250Hz/500Hz (2.4GHz)
RF output power: 25mW/50mW/100mW/250mW/500mW (2.4GHz), 100mW/250mW/500mW (915MHz/868MHz)
Frequency bands (Micro RF Module 2.4G version): 2.4GHz ISM
Frequency bands (Micro RF Module 915MHz/868MHz version): 915MHz FCC/868MHz EU
Input voltage: 5V~12V
XT30 port: 5V~12V, up to 2S (8.4V) battery, DO NOT support 3S (12.6V) or above
USB port: Type-C

Namimno Flash and Voyager TX ExpressLRS transmitter modules

Namimno Flash is 2.4GHz and Voyager is 868/915MHz band ExpressLRS transmitter modules. These TX modules are based on STM32F103 MCU, so they have different Wi-Fi update method, must be flashed via the backpack Wi-Fi chip. Namimno Flash max RF power output is 250mW and Voyager is 1W.

Banggood: 2.4GHz – https://www.banggood.com/Namimno-ExpressLRS-ELRS-2_4GHz-Flash-Low-Latency-and-High-Refresh-Rate-TX-Module-with-Nano-Mini-RC-Receiver-…-1868003.html

915MHzhttps://www.banggood.com/Namimno-ExpressLRS-ELRS-915-Voyager-Low-Latency-and-High-Refresh-Rate-TX-Module-with-Voyager-Mini-RC-Receiver-for-RC-FPV-Racing-Drone-p-1868067.html

2.4GHz Flash TX Module specifications:
Wireless frequency: 2400-2480MHz
Transmitting power: <27dBm (250 mW)
Remote control distance: >3000m
Remote control refresh rate: 50Hz-500Hz
RF interface: SMA-outer screw inner hole (adapted antenna inner screw inner pin)
Power supply: internal power supply: 6-13V, external power supply 6-16V
Size: 64*52*40mm

915MHz Voyager TX Module specifications:
Wireless frequency: 868-915MHz
Transmitting power: <30dBm (1 W)
Remote control distance: >3000m
Remote control refresh rate: 25Hz-250Hz
RF interface: SMA-outer screw inner hole (adapted antenna inner screw inner pin)
Power supply: internal power supply: 6-13V, external power supply 6-16V
Size: 64*52*40mm

HGLRC Hermes 2400TX ExpressLRS transmitter module

HGLRC Hermes 2400TX is the 2.4GHz band ExpressLRS transmitter module. Fits the standard JR module bay. Comes with the simple dipole t-style antenna. Module has USB Type-C socket for firmware updates and XT30 socket for external power supply (up to 17 volts or 4S battery), which is absolutely not needed in my opinion.

The first batches have been known to have short Wi-Fi range, due to the missing internal antenna on the PCB.

Another issue is the HLGRC failed to implement the USB reset circuit correctly.  You have to hold down the boot button there before you plug the module with the USB cable. You can access the button from the hole in the back of the case (which is super inconvenient).

Banggood: https://www.banggood.com/HGLRC-Herme-ExpressLRS-ELRS-2_4GHz-2400TX-500Hz-High-Refresh-Low-Latency-Long-Range-Micro-TX-Module-…-1883637.html

Specifications:
Frequency Range: 2400 MHz
Receiving refresh rate: 50Hz-500Hz
RF Output Power: 10dBm24dBm (250mW)
Support voltage: 6.5-17V
Antenna gain: 2dBi
Size: 68×48.5×8 mm
JR standard 5pin socket
Weight: 37.5g (without antenna)


HiYOUNGER ExpressLRS ELRS 2.4GHz TX2G4 transmitter module

Banggoodhttps://www.banggood.com/HiYOUNGER-TX2G4-ExpressLRS-ELRS-…-1901551.html

Aliexpress: https://www.aliexpress.com/item/1005003351785146.html

Specifications:

Name: HiYOUNGER TX2G4 TX Module
Frequency Range: 2400 MHz
Receiving refresh rate: 50Hz/100Hz/500Hz
RF Output Power: 100Mw/250mW/500mW
Support voltage: 5-12V
Antenna gain: 2dBi
Size: 65x48x22mm
JR standard 5pin socket
Weight: 35g (without antenna)

AxisFlying 2.4GHz Thor ELRS transmitter module

Premium class ExpressLRS transmitter module with up to 1000mW of RF power. Has color LCD screen, joystick control and can be used with the radios not supporting the LUA script.

Released on 2021-10.

Banggood: https://www.banggood.com/Axisflying-Thors-TX-Pro-2_4GHz-ExpressLRS-ELRS-TX-Module-10-1000mW-…-1921207.html

GetFPVhttps://www.getfpv.com/axisflying-elrs-thor-tx-pro-2-4ghz-10-1000mw-micro-module.html

Specifications:
XT30 port: 7V~21V, DOES NOT support 6S or above battery voltage
RF output power: 25mW/50mW/100mW/250mW/500mW/1000mW
Packet refresh rate: 50Hz/150Hz/250Hz/500Hz
Storage Box Size: 29x29x15.5mm
Frequency band: 2.4GHz ISM
Weight (Including JR): ~105g
Automatic and active cooling
Dimensions: 87x55x15mm
Input voltage: 5V~12V
Wi-Fi update capable
USB port: Type-C

FrSky VANTAC ELRS TX Nano module

Ironically FrSky also decided to take a part in the ELRS market and released their co-brand VANTAC ELRS TX module. It is nano sized (JR Lite) transmitter module in the same case as VANTAC Multiprotocol module. This is the cheapest ELRS Nano TX module in the market. No more details at this time.

Released on 2021-12

HorusRChttps://www.horusrc.com/en/vantac-2-4ghz-elrs-tx-module.html

Specifications:

Packet refresh rate: 25Hz/50Hz/150Hz/250Hz/500Hz (2.4GHz)
RF output power: 10mW/25mW/50mW/100mW/250mW/500mW
Frequency bands: 2.4GHz ISM
Input voltage: 5-12V
USB port: Type-C
RGB LED

Jumper AION ExpressLRS TX module

Released as external transmitter module with JR Lite (nano) form factor. Has OLED screen and actually is the only ELRS TX Nano sized module with OLED screen.

Available @

Aliexpresshttps://www.aliexpress.com/item/1005003723174169.html

Specifications:
Model: AION ELRS 2.4TX-NANO
Main control chip: ESP32
Transmitting power: 10-500mw
Frequency bandwidth: 2.4GHz-2.5GHz
Compatible firmware: ELRS
Antenna: omnidirectional high gain diamond antenna
Quick socket: NANO (JR lite) interface
Working voltage: DC5-8.4V
Maximum refresh rate: 500Hz
Screen form: 0.96 inch white light OLED
Screen resolution: 128*64
Menu button: five-way joystick
Upgrade method: UBC-C or Bluetooth
Simulator: supports Bluetooth and WIFI wireless mode



Foxeer 915MHz 1W TX Module

Foxeer is releasing 1W ExpressLRS TX Module for 915/868MHz bands. No more info yet.



Available @

Foxeer: –

Aliexpress: –

Specifications: None



ExpressLRS Receivers

Happymodel ES900RX (900MHz) and PP, EP1, EP2 (2.4GHz) receivers

ES900RX is the updated version of the ES915RX, the ExpressLRS receiver for 900 MHz band. Happymodel changed the main MCU from STM to the ESP8285, and now it has Wi-Fi upgrade capability.

PP, EP1 and EP2 2.4GHz ExpressLRS receivers were also the first 2.4GHz RX in the market. And they are still the most popular ones.

PP receiver has STM MCU and is not capable of the Wi-Fi update. The EP1 and EP2 receivers are ESP8285 MCU based and can be updated via Wi-Fi connection.

PP and EP2 receivers have unique ceramic antenna on board. They are the smallest Long Range receivers by size and weight including the antenna. ExpressLRS range is so great, that small ceramic antenna is enough to have stable decent range (several kilometers).

Banggood: 2.4 GHz, EP1 – https://www.banggood.com/0_42g-Happymodel-2_4G-ExpressLRS-EP1-Nano-High-Refresh-Rate-Ultra-small-Long-Range-RC-Receiver

EP2 – https://www.banggood.com/0_44g-Happymodel-2_4G-ExpressLRS-ELRS-EP2-Nano-High-Refresh-Rate-Ultra-small-Long-Range-RC-Receiver

900MHz – https://www.banggood.com/Happymodel-ExpressLRS-ES915TX-915MHz-Ultra-Long-Range-Transmitter-Module-and-ES915RX-0_7g-Receiver

ES900RX receiver specifications:
MCU: ESP8285
VCC input: 5v
Operation current: ~100Ma
Rx To FC protocol: CRSF
RF Frequency optional: 915mhz or 868mhz(EU)
Dimension: 12mm*12mm*3mm
Weight: 0.60 gram (exclude antenna)
Antenna connector:  IPEX1
Telemetry output Power: <17dBm

PP, EP1, EP2 receiver specifications:
PP MCU: STM32, EP1, EP2 MCU: ESP8285 MCU
SX1280IMLTRT RF Module
PP, EP2 : On board SMD ceramic antennaEP1 : Omnidirectional antenna with IPEX connector
Frequency Range: 2400 MHz to 2500 MHz
Minimum receiver refresh rate: 50Hz
Maximum receive refresh rate: 500Hz
Rx To FC protocol: CRSF
Working voltage: 5v
Weight: 0.42g (without antenna)
Dimension: 10mm*10mm*3mm
Peak gain: 2.23dB
Range: 3KM above (Open Area)

The difference between PP, EP1 and EP2 receivers

PP vs EP1 vs EP2 PP (with SMD antenna) EP1 (w/o antenna)  EP2 (with SMD antenna)
MCU STM32L432KBU6 ESP8285 ESP8285
RF Chip SX1280IMLTRT SX1280IMLTRT SX1280IMLTRT
Antenna SMD Ceramic Omnidirectional SMD Ceramic
Dimension 10mm*10mm*6mm 10mm*10mm*3mm 10mm*10mm*6mm
Weight 0.47g 0.42g 0.44g
Firmware target 6cb8152d aec8ad82 aec8ad82
Firmware upload Betaflight pass-through Wifi Wifi



BetaFPV Nano ExpressLRS receivers

BetaFPV 2.4GHz and 900MHz ELRS receivers with PA/LNA.

Read the full review here: Review: BetaFPV ExpressLRS 2.4GHz system

 BetaFPVhttps://betafpv.com/collections/expresslrs-series/products/elrs-nano-receiver

 Banggood2.4GHz – https://www.banggood.com/0_7g-BETAFPV-ExpressLRS-2_4GHz-Nano-Ultra-small-Long-Range-RC-Receiver

 900MHz – https://www.banggood.com/0_7g-BETAFPV-ExpressLRS-868-or-915MHz-Nano-Ultra-small-Long-Range-RC-Receiver

Specification
Weight: 0.7g (receiver only, w/o antenna)
Size: 12mm*19mm
Telemetry power: 20dbm (100mW, 2.4G Version)
Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
Frequency bands (Nano receiver 915MHz/868MHz version): 915MHz FCC/868MHz EU
Input voltage: 5V
Antenna connector: IPEX MHF

BetaFPV Lite 2.4GHz ExpressLRS receiver

The smallest ExpressLRS receivers in the market.

BetaFPV Lite receiver with “Tower” type SMD antenna.

BetaFPV Lite receiver with “Flat” type SMD antenna.

BetaFPV ELRS Lite receiver with “Tower” and “Flat” antenna comparison table:

  Tower Antenna Flat Antenna
Weight 0.47g 0.53g
Size 10mm*10mm*6mm 11mm*10mm*3mm
Gain 3.3dBi 3.2dBi
Radio Efficiency >70% >80%
Return Loss <-7 <-7
Range (TX 100mW 150Hz) About 600m About 600m (?)

Both “Tower” and “Flat” antennas have almost the same performance in gain, but the efficiency for “flat” antenna is better than “tower” antenna. However this is only the specs on the paper. In the reality the tower antenna performs better and the range is greater. Need to be noted that receiver with the “flat” type antenna has the LED on the top side of the PCB for the better visibility.

BetaFPVhttps://betafpv.com/collections/expresslrs-series/products/elrs-lite-receiver

Banggoodhttps://www.banggood.com/0_4g-BETAFPV-ExpressLRS-ELRS-2_4GHz-Lite-…-1912335.html

Specifications:
Weight: 0.47g (with Tower SMD ceramic antenna), 0.53g (with Flat SMD ceramic antenna)
Size: 10mm*10mm*6mm (Tower), 11mm*10mm*3mm (Flat)
MCU: ESP8285
Telemetry power: 17mW
Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
Input voltage: 5V
Antenna: Integrated SMD ceramic antenna



BetaFPV SuperD 2.4GHz ExpressLRS receiver

BetaFPV SuperD receiver is the first ExpressLRS receiver with full dual diversity and temperature compensated crystal (TCXO). Receiver has two SX1280 LoRa RF ICs, two PA/LNA amplifiers and two antenna connectors. These two separate RF ICs make possible to receive two separate control signals on two separate frequencies making the true full diversity receiver. Power amplifiers on this receiver provides 100mW for telemetry link.

Available @

BetaFPV: https://betafpv.com/products/superd-elrs-2-4g-diversity-receiver

Aliexpress: https://www.aliexpress.com/item/1005004938838056.html

Banggood: https://www.banggood.com/Betafpv-SuperD-ELRS-…-1977267.html

Specifications:

MCU: ESP32 PICO D4, dual SX1280 (SX1281)
Antenna Connector: IPEX MHF 1/U.FL
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry Power: 20dBm (100mW)
Receiver Protocol: CRSF
Input Voltage: +5V DC @ “+” pad
PCB Size: 22mm*14mm
Weight: 1.1g excluding antennas



BetaFPV PWM ExpressLRS Micro receiver

PWM variant of the ExpressLRS receiver. Outputs 5 PWM channels or CRSF via TX/RX.

BetaFPVhttps://betafpv.com/products/elrs-micro-receiver

Banggoodhttps://www.banggood.com/BETAFPV-ExpressLRS-ELRS-5CH-PWM-…-1931480.html

Specifications:
PWM channel: 5 channels
Serial output protocol: PWM or CRSF
MCU: ESP8285/SX1280/SX1281
Telemetry power: 12.5dbm/17mW
Frequency bands: 2.4GHz ISM
Input voltage: 5V~9V DC @ “+” pad
Default firmware version: ExpressLRS v2.0
Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.
Size: 19mm*32mm*9mm (without antenna)
Weight: 4.5g (with antenna)



Namimno Flash and Voyager ExpressLRS receivers

Namimno Flash is 2.4GHz and Voyager is 868/915MHz band ExpressLRS receivers. Both receivers have IPEX antenna connector and comes with corresponding suitable band antenna.

Banggood: 2.4GHzhttps://www.banggood.com/Namimno-ExpressLRS-ELRS-2_4GHz-Flash-Low-Latency-and-High-Refresh-Rate-TX-Module-with-Nano-Mini-RC-Receiver-…-1868003.html

915MHz – https://www.banggood.com/Namimno-ExpressLRS-ELRS-915-Voyager-Low-Latency-and-High-Refresh-Rate-TX-Module-with-Voyager-Mini-RC-Receiver-for-RC-FPV-Racing-Drone-p-1868067.html

Namimno 2.4GHz Flash Nano Receiver specifications:
Frequency: 2400-2480MHz
Transmitting power: <12.5dBm
Remote control distance: >3000m
Remote control refresh rate: 50Hz-500Hz
RF interface: IPEX connector
Power supply: 4.5-10V
Size: 18.35*11.5*3.5mm

Namimno  915MHz Voyager Receiver specifications:
Frequency: 868-915MHz
Transmitting power: <17dBm
Remote control distance: >3000m
Remote control refresh rate: 25Hz-250Hz
RF interface: IPEX connector
Power supply: 4.5-10V
Size: 18.35*11.5*3.5mm




HGLRC Hermes 2400RX and 900RX ExpressLRS receivers

Banggood: 2.4GHz –  https://www.banggood.com/0_7g-HGLRC-Herme-ExpressLRS-ELRS-2_4GHz-2400RX-500Hz-High-Refresh-Low-Latency-Mini-RC-Receiver-…-1883638.html

915MHz – https://www.banggood.com/0_5g-HGLRC-Herme-ExpressLRS-ELRS-900RX-Low-Latency-Long-Range-Mini-RC-Receiver-for-RC-FPV-Racing-Drone-p-1883640.html

2400RX RC Receiver specifications:
Frequency range: 2400MHz
Receiving refresh rate: 50Hz-500Hz
Input voltage: 5V
Antenna gain: 2dBi
Size: 15x11x3 mm
Receiving protocol: CRSF
Antenna connector: IPEX
2.4GHz omnidirectional T antenna
Weight: 0.7g (without antenna)

900RX RC Receiver specifications:
Frequency range: 915MHz
Receiving refresh rate: 25Hz-250Hz
Input voltage: 5V
Antenna gain: 2dBi
Size: 16.5x10x3 mm
Receiving protocol: CRSF
Antenna connector: IPEX
915Mhz omnidirectional T antenna
Weight: 0.5g (without antenna)

Flywoo EL24E and EL24P 2.4GHz receivers

Flywoo ExpressLRS receivers are based on the common DIY ExpressLRS reference design. For upgrading the firmware you should select the DIY_2400_RX_ESP8285_SX1280… firmware option.

Flywoo EL24E receiver has SMD Ceramic antenna. and the weight if the receiver is 0.4 grams with antennaFlywoo EL24P receiver has uFL (ipex) connector for supplied dipole antenna and weight twice as much.

  Flywoo: https://flywoo.net/collections/new/products/0-4g-flywoo-2-4g-expresslrs-elrs-el24e-el24p

  Banggoodhttps://www.banggood.com/0_4g-Flywoo-Universal-ExpressLRS-ELRS-EL24E-or-EL24P-…-1887378.html

Specifications:
EL24E Nano Receiver
Type: 2.4G ISM
ESP8285 MCU
SX1280IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.4g
Dimension: 10.8mm*11mm*6mm
Peak gain: 3.7dB

EL24P Nano Receiver
Type: 2.4G ISM
ESP8285 MCU
SX1280IMLTRT RF Module
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.4g
Dimension: 10.8mm*11mm*6mm
Peak gain: 3.2dB
Package include 1pcs 40mm half-wave dipole antenna

JHEMCU SP24S and EP24S 2.4GHz receivers

JHEMCU SP24S and EP24S are almost the same as Happymodel EP1 and EP2 receivers. SP24S has T-shaped dipole antenna and the EP24S has on board SMD ceramic antenna.

Banggood: SPS24Shttps://www.banggood.com/0_5g-JHEMCU-SP24S-2_4G-ExpressLRS-ELRS-High-Refresh-Rate-Low-Latency-Ultra-small-Long-range-RC-Receiver-for-RC-FPV-Drone-p-1893616.html

EP24S – https://www.banggood.com/0_5g-JHEMCU-EP24S-2_4G-ExpressLRS-ELRS-High-Refresh-Rate-Low-Latency-Ultra-small-Long-range-RC-Receiver-for-RC-FPV-Drone-p-1893615.html

SP24S RC Receiver Specifications:
2.4G ISM type
ESP8285 MCU
SX1280IMLTRT RF
Frequency range: 2400 MHz To 2500 MHz
Minimum receiving refresh rate: 50Hz
Maximum receiving refresh rate: 500Hz
Working voltage: 5V
Working Agreement: CRSF (Betaflight)
Peak gain: SP24S –  3.7dB, EP24S – 3.16dB
Weight: 0.5g (without antenna)
Size: SP24S – 11*11*6 mm, EP24S – 11*11*3 mm
SP24S: SMD ceramic antenna, EP24S: Dipole T-shaped antenna

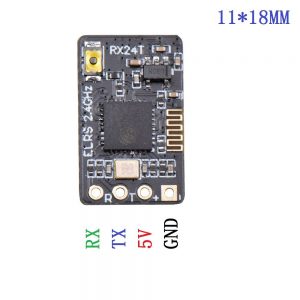

JHEMCU RX24T 2.4GHz ExpressLRS receiver

JHEMCU RX24T receiver has PA/LNA (amplifier) chip, and is capable of transmitting back the telemetry with 100mW. This receiver has IPEX antenna connector and comes with T-shaped antenna.

Banggood: https://www.banggood.com/0_6g-JHEMCU-RX24T-2_4G-ExpressLRS-ELRS-High-Refresh-Rate-Low-Latency-Ultra-small-Long-range-RC-Receiver-for-RC-FPV-Drone-p-1893614.html

Specifications:
Name: JHEMCU RX24T RC Receiver
Weight:0.6g(without antenna)
Size: 11*18*3 mm
2.4G ISM type
ESP8285 MCU
SX1280IMLTRT RF
Frequency range: 2400 MHz To 2500 MHz
Maximum receiving refresh rate: 500Hz
Minimum receiving refresh rate: 50Hz
Working voltage: 5V
Peak gain: 3.16dB
RX24T: Half-wave dipole omnidirectional T-shaped antenna

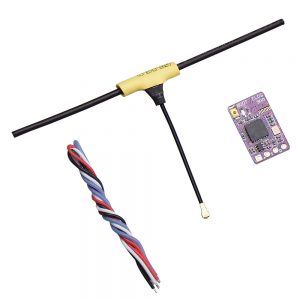

JHEMCU 900RX 915/868MHz ExpressLRS  receiver

JHEMCU 900RX is 900MHz band ExpressLRS receiver. The antenna is probably tuned for 915MHz frequency.

Banggood: https://www.banggood.com/0_6g-JHEMCU-900RX-868-or-915MHz-ExpressLRS-ELRS-High-Refresh-Rate-Low-Latency-Ultra-small-Long-range-RC-Receiver-for-RC-FPV-Drone-p-1893613.html

Specifications:
Name: JHEMCU 900RX RC Receiver
915M FCC type (AU EU updates the firmware by itself)
ESP8285 MCU
SX1276 RF
Frequency range: 915MHz FCC
Minimum receiving refresh rate: 25Hz
Maximum receiving refresh rate: 250Hz
Working voltage: 5V
Size: 11*18*3 mm
Weight: 0.6g (without antenna)

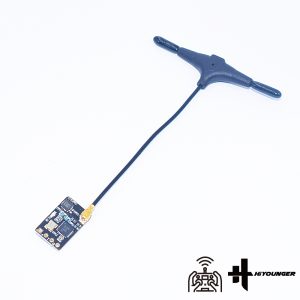

HiYOUNGER MiniQ 2.4GHz SP24S and EP24S receivers

SP24S – https://www.aliexpress.com/item/1005003203042595.html

EP24Shttps://www.aliexpress.com/item/1005003202986962.html

Specifications:
Frequency band: 2.4G ISM type
Chip type: ESP8285 MCU
RF chip: SX1280IMLTRT RF
Frequency range: 2400 MHZ To 2500 MHZ
Maximum receiving refresh rate: 500HZ
Minimum receiving refresh rate: 25HZ
Working voltage: 5V
Weight: 0.5g
Working Agreement: CRSF (Betaflight)
Dimension: 11mm*11mm*6mm
SP24S – SMD 2.4GHz imported ceramic antenna
Peak gain: 3.7dB
EP24S – Half-wave dipole omnidirectional T-shaped antenna
Antenna plug: IPEX MHF
Peak gain: 3.16dB

HiYOUNGER MiniQ 2.4GHz RX24T receiver

Seems to be the same design as JHEMCU RX24T receiver and should be flashed with the BetaFPV RX target.

Aliexpresshttps://www.aliexpress.com/item/1005003306583208.html

Specifications:

Frequency band: 2.4G ISM type
Chip type: ESP8285 MCU
RF chip: SX1280IMLTRT RF
Frequency range: 2400 MHZ To 2500 MHZ
Maximum receiving refresh rate: 500HZ
Minimum receiving refresh rate: 50HZ
Working voltage: 5V
Weight: 0.6g
Working Agreement: CRSF (Betaflight)
Size: 11mm*18mm*3mm
Peak gain: 3.16dB
Antenna plug: IPEX MHF

HiYOUNGER MiniQ 900MHz 900RX receiver

Aliexpresshttps://www.aliexpress.com/item/1005003302688848.html

Specifications:
Frequency band: 915MHz FCC (AU EU updates the firmware by itself)
Chip type: ESP8285 MCU
RF chip: SX1276
Frequency range: 915MHZ
Maximum receiving refresh rate: 250HZ
Minimum receiving refresh rate: 25HZ
Working voltage: 5V
Weight: 0.6g
Working Agreement: CRSF (Betaflight)
Size: 11mm*18mm*3mm
Antenna plug: IPEX MHF

Matek systems ELRS-R24-D and ELRS-R24-S receivers

Matek also released  The ELRS-R24-D and ELRS-R24-S receivers are bigger than other manufacturers versions because of the one side component placement design. Industry first: Matek ELRS-R24-D is the first ExpressLRS receiver with antenna diversity feature and the ELRS-R24-S is the first ExpressLRS receivers with the SMD antenna and Low noise power amplifier.

Matek ELRS-R24-D has PA/PNA amplifier and can output the telemetry back with up to 23dBm of RF power.

Matek ELRS-R24-D also has PA/PNA amplifier, but the power output is 20dBm.

Released on 2021-10

ELRS-R24-D  https://www.banggood.com/MATEKSYS-ELRS-R24-D-2_4GHz-ExpressLRS-ELRS-Diversity-Receiver-…-1900904.html

ELRS-R24-S https://www.banggood.com/MATEKSYS-ELRS-R24-S-2_4GHz-ExpressLRS-ELRS-Receiver-…-1900905.html

ELRS-R24-D Specifications:

  • ESP8285, SX1280IMLTRT
  • PA/LNA: SE2431L
  • Antenna connector: IPEX MHF 1
  • RF Frequency: 2.4GHz ISM
  • Telemetry power: 22.5dbm (177mW)
  • Diversity: antenna-switching, default ANT2
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
  • PCB size: 21mm x 15mm
  • Weight: 3g w/ 2x antennas
  • Packing: 1x ELRS-R24-D,   2x IPEX MHF1 Antennas

ELRS-R24-S Specifications:

  • ESP8285, SX1280IMLTRT
  • PA/LNA: AT2401C
  • molex 479480001 SMT antenna
  • RF Frequency: 2.4GHz ISM
  • Telemetry power: 20dbm (100mW)
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation:  40~45mA(before binding), 60~65mA(binding), 90~95mA(wifi mode)
  • PCB size: 21mm x 15mm
  • Weight: 1.2g
  • Packing: 1x ELRS-R24-S

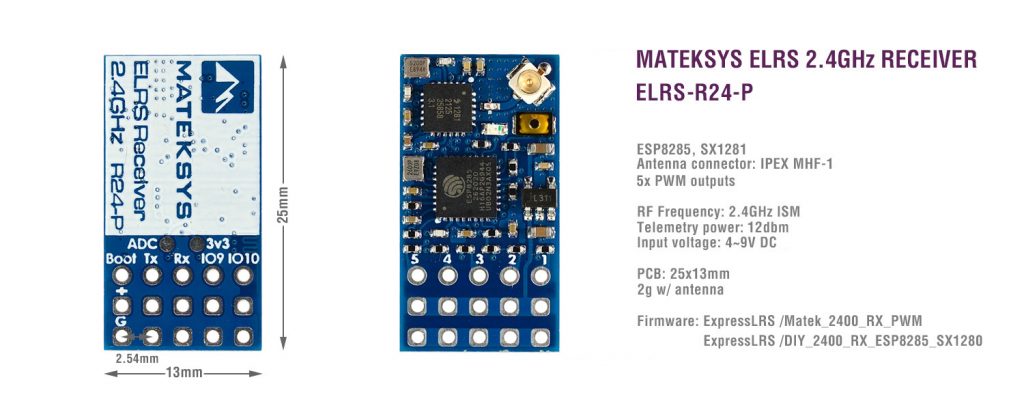

Matek systems ELRS-R24-P PWM receiver

Another industry first – first ExpressLRS receiver with PWM output on one board. Outputs 5 PWM channels. This receiver does not have the PA/LNA and its telemetry power output is only 12dBm, but it is more than enough for LOS fixed wings. Comes only 2.4GHz band option.

Comparison in MATEK ELRS-R24 series

SKU R24-P R24-D R24-S
RF Frequency 2.4GHz 2.4GHz 2.4GHz
Antenna IPEX MHF1 2x IPEX MHF1, Diversity SMT Antanna
PA/LNA / SE2431L AT2401C
Telemetry 12dbm 23dbm 20dbm
LNA Rx_gain / 12.5dB 12dB
CRSF Serial receiver DIY_2400_RX_ESP8285_SX1280 MATEK_2400_RX MATEK_2400_RX
PWM receiver MATEK_2400_RX_PWM / /

Comparison between Matek ELRS-R24-P and CRSF-PWM converter

SKU R24-P CRSF-PWM-6 CRSF-PWM-C
  Receiver with ELRS direct PWM output CRSF to PWM Converter/Decoder
PWM outputs 5 6 10
RF Frequency 2.4GHz compatible with any CRSF protocol receivers
(including 433MHz, 868MHz, 915MHz, 2.4GHz)
PWM frequency 50Hz 50, 100, 160, 330, 400Hz
Telemetry ID RSS, Qly SNR RSSI, Qly SNR
RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
CH remapping support No



AxisFlying 2.4GHz ELRS receiver

Released on 2022-02

Banggood: https://www.banggood.com/Axisflying-ExpressLRS-ELRS-2_4Ghz-Ultra-small-Long-Range-RC-Radio-Receiver-…-1932479.html

GetFPVhttps://www.getfpv.com/axisflying-elrs-2-4ghz-radio-receiver.html

Specifications:
Weight: 0.8g (receiver only), 2.4g (with antenna)
Frequency Range: 2400 MHz to 2500 MHz
Maximum Receive Refresh Rate: 500Hz
Minimum Receiver Refresh Rate: 25Hz
Dimension: 18.2×11.75x3mm
RF Module: SX1280IMLTRT
Antenna Connector: IPEX
Receiver Protocol: CRSF
Working Voltage: 5V
MUC: ESP8285



FrSky VANTAC ELRS RX receiver

VANTAC ELRS RX receiver is Frsky co-brand product. No more details at this time.

Released on 2021-12

HorusRChttps://www.horusrc.com/en/vantac-2-4ghz-elrs-receiver.html

Specifications:

  • none

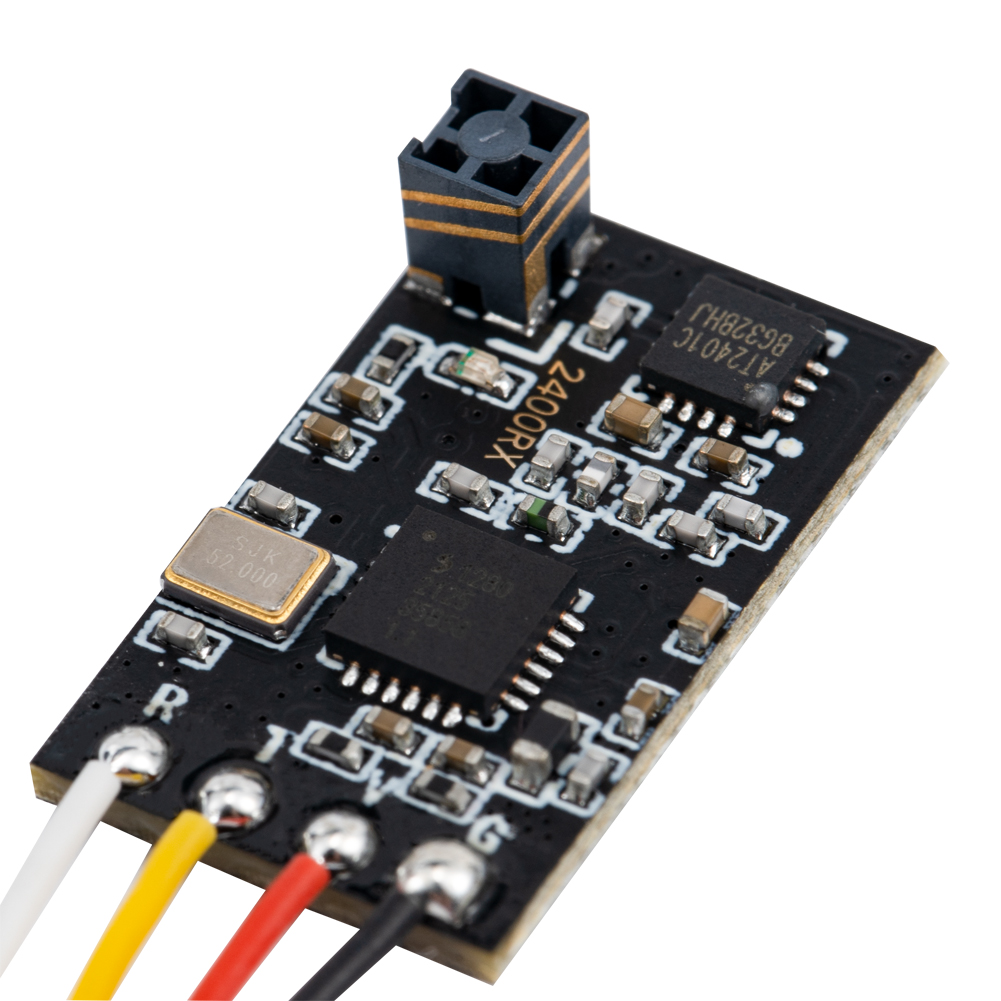

iFlight ELRS receiver

ELRS receiver with PA/LNA chip. Telemetry output – 17dbm (868/915MHz) / 20dbm(2.4G). This receiver has non standard pinout and comes with SH1.25 connector pre-soldered. It is Plug and Play compatible with with iFlight flight controllers. Available in 868/915MHz or 2.4GHz bands. 2.4GHz receiver also available in SMD antenna or regular antenna with u.Fl connector.

Available @ iFlight: https://shop.iflight-rc.com/iFlight-ELRS-Receiver-Pro1757

Specifications:
Antenna connector: IPEX(868MHz/915MHz/2.4G) / Molex 479480001 SMD antenna(2.4G w/SMD antenna)
Firmware: ExpressLRS iFlight 900RX(868MHz/918MHz) / ExpressLRS iFlight 2400RX(2.4G)
Frequency bands: 868MHz EU/915MHz FCC and 2.4GHz ISM
Telemetry Power: 17dbm (868/915MHz) / 20dbm(2.4G)
Dimension: 12*19.5mm
Connector: SH1.25 including 30mm wire (pre-soldered)
Interface: 5V GND RX TX
Input voltage: 5V
Protocol: CRSF
Weight: 1.2g



Skystars Diversity Receiver

ExpressLRS receiver with PA/LNA (amplifier) and diversity antenna (antenna switching) features. PA/LNA chip SE2431L from Skyworks has low noise amplifier and antenna switching capability. It has the highest telemetry power output 250mW for ExpressLRS receiver.

Available @

Aliexpress: https://www.aliexpress.com/item/1005004172172225.html

Banggood: https://www.banggood.com/Skystars-0_8g-2_4GHz-ELRS-Dual-Antenna-…-1966597.html

Specifications:
MCU: ESP8285
RF: SX1280
PA/LNA: SE2431L
Antenna connector: IPEX 1
RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 250mw (~23dbm)
SE2431L RX_Gain: 12.5dB
Diversity: Antenna Switching Default: ANT2
Receiver protocol: CRSF
Input voltage: 4.5~5V DC @ 5V pad Power dissipation: 40~45mA (Before Bind), 70~75mA(Binding), 90~95mA(Wifi Mode)
PCB size: 20mm x 11mm
Weight: 0.8g without antennas
Packing: 1x Skystars Supreme 2.4GHz, 2x T Antennas



Radiomaster RP1 and RP2 Receivers

ExpressLRS receivers from Radiomaster. They have the LED indicator on the top side of the PCB. The RP1 has external T style dipole antenna and the RP2 has on board ceramic “tower” antenna.

Available @

Aliexpress: https://www.aliexpress.com/item/1005004720231554.html

Banggood: RP1https://www.banggood.com/RadioMaster-RP1-2_4GHz-ExpressLRS-ELRS-…html

RP2https://www.banggood.com/RadioMaster-RP2-2_4GHz-ExpressLRS-ELRS-…html

GetFPV: RP1 –  https://www.getfpv.com/radiomaster-rp1-…-nano-receiver-w-65mm-ufl-t-antenna.html

RP2https://www.getfpv.com/radiomaster-rp2-…-nano-receiver-w-fixed-smt-antenna.html

Specifications:
Item: RP1/RP2 Nano ExpressLRS 2.4ghz Receiver
Type: ISM (2.4GHz)
Antenna: 65mm 2.4ghz T Antenna With IPEX for RP1 /  On Board SMT Antenna for RP2
Minimum – Maximum receiver refresh rate: 25Hz – 500Hz / F1000Hz
Working voltage: 5v
Weight: 2.2g (Including external antenna) for RP1 / 0.55g (On Board antenna) for RP2
Dimension: 13*11*3mm for RP1 / 13*11*7mm for RP2
Firmware Version: ExpressLRS v2.4 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF



DarwinFPV/BAYCK ExpressLRS Nano receiver

DarwinFPV or BAYCK ExpressLRS receiver with PA/LNA (RFX2401 from Skyworks). Telemetry power output is 100mW for this receiver. Has external antenna, connected via IPEX antenna connector. All components are located on the top side of the PCB for convenient mounting.

Available @

DarwinFPV: https://darwinfpv.com/products/darwinfpv-2-4g-elrs-nano-receiver

Aliexpress: https://www.aliexpress.com/item/1005004622598602.html

Specifications:
Model: ELRS 2.4G NANO
RF Freq: 2.4Ghz
IC: SX1281+ESP8285
TX Power: 100mW
Antenna Connector: IPEX1
Input Power: 3.6~5.5v
Weight: 0.4g (receiver only)
Size: 11mm*18mm
Firmware: BETAFPV Nano 2400RX

DarwinFPV  might also release the ExpressLRS receiver with ceramic antenna.



(Will not be released)



To be continued…



Antennas

BetaFPV Moxon an Loop antennas

BetaFPV Moxon is directional and Loop is omnidirectional antenna.

Moxon antenna is a directional antenna that focuses RF energy in a required direction. It has 5.4dBi gain and more suitable for long range flying and should be pointed towards the aircraft.

Loop antenna is an omnidirectional antenna that radiates and receives the RF energy equally, providing a 360-degree radiation pattern that allows connectivity in all horizontal directions. It has lower gain of 2.3dBi, but more equal radiation compared to the Moxon antenna. More suitable for freestyling and closer flying.

BetaFPV Moxon antenna is directional to the front. Below is the antenna 3D radiation pattern image.

BetaFPV Loop antenna is omnidirectional with a 360-degree horizontal radiation pattern. Below is the antenna 3D radiation pattern image.

Available @

BetaFPV: Moxon – https://betafpv.com/products/betafpv-moxon-antenna

Loop – https://betafpv.com/products/betafpv-loop-antenna

Specifications:

Moxon Antenna V2

  • Coaxial cable length: 65mm(2.4G)/90mm(915M)
  • Connector: SMA Male
  • Gain: 5.4dBi(2.4G)/5.9dBi(915M)
  • VSWR: <2.0(2.4G)/<2.0(915M)
  • Polarization type: Linear polarization

Loop Antenna V2

  • Coaxial cable length: 65mm (2.4G)/90mm (868MHz/915MHz)
  • Connector: SMA Male
  • Gain: 2.3dBi (2.4G)/2.3dBi (868MHz/915MHz)
  • VSWR: <1.5 (2.4G)/<2.0 (868MHz/915MHz)
  • Polarization type: Linear polarization

HappyModel Moxon 2.4G 4.18DBI Antenna

Happymodel Moxon Antenna is a folded dipole and single folded reflector type antenna. This antenna is the same as BetaFPV and Namimno 2.4GHz Moxon antennas. Currently the cheapest 2.4GHz Moxon type antenna.

Available @

Aliexpresshttps://s.click.aliexpress.com/e/_AM4SCF

Banggood: https://www.banggood.com/Happymodel-ExpressLRS-ELRS-2_4GHz-Long-Range-Moxon-Antenna-…-1906431.html

Specifications:
Frequency  (MHz): 2400.0
Efficiency (dBi): -2.94
Gain (dBi): 4.18
Efficiency (%):  50.77
Directivity (dB):  7.12
Peak Gain Position (Theta):  0.00
Peak Gain Position (Phi):     270.00
Weight (gram):  5.83g
Length(mm)*width(mm):     69*45
Plug type: SMA
Package include: Happymodel 2.4GHz Moxon antenna x1pcs



Namimno 2.4GHz Black Pearl Loop Antenna

Mamimno Black Pearl Loop antenna is actually a folded dipole with a balun type antenna, not a moxon as it looks. This is the same type as TBS Diamond or FrSky Super 8 antenna.

Available @

Aliexpresshttps://www.aliexpress.com/item/1005003156869216.html

Banggoodhttps://www.banggood.com/Namimno-ExpressLRS-ELRS-2_4GHz-Black-Pearl-Loop-Antenna-Parts-for-TX-Module-p-1869892.html

Specifications:
Item Name: Namimno Black Pearl Loop Antenna
Package Weight: 30g
Color: Black
Wireless frequency: 2350-2550MHz
Gain: 2.8dB
RF interface: SMA Male
Size: 47.65*64mm



Prodrone 2.4GHz moxon antenna

Probably the best Moxon type antenna for 2.4GHz ExpressLRS link. Gain of this Moxon antenna is about 5.5dBi. Each of this antenna is hand made and SWR is tested by lab equipment. It even comes with the test results labeled!

Available @

Prodronehttps://shop.prodrone.pl/en_US/p/Pro-Moxon-2.4Ghz-5.5dbi/137

Specifications:
Bandwidth: 2400-2480 MHz
Beam width: over 180 degrees
Gain: 5.5 dBi
Cable length: ~7cm
Antenna conductor: 1mm silver covered pure copper
vSWR: lower than 1.3
Maximum power input: 50W
Connector: SMA or RP-SMA
Weight of antenna: ~6g



BetaFPV Dipole T-antenna for receiver

This is the best dipole antenna for the ELRS receiver. Antenna elements are made from the steel wire and does not bend easily. Antenna housing has notch for ziptying it to the quadcopter frame. Small, but important detail.

Available @

Aliexpresshttps://www.aliexpress.com/item/1005003357554140.html

Banggoodhttps://www.banggood.com/2-Pcs-BETAFPV-ExpressLRS-ELRS-…-Dipole-T-Antenna-for-RC-Receiver-p-1873822.html

Specifications:
Name: BETAFPV T Antenna
Style: 2.4GHz, 868/915MHz (Optional)
Coaxial cable length: 46mm/80mm
Antenna width: 60mm
Weight: 0.94g
Connector: IPEX MHF
Gain: 2dBi
VSWR: <1.4 (2.4G version) / <1.6 (915MHz/868MHz version)
Quantity: 2 Pcs

Comments
  1. Andrés
    • montis
    • DangerD

Leave a Reply

Your email address will not be published.

*
