RunCam Racer Nano camera

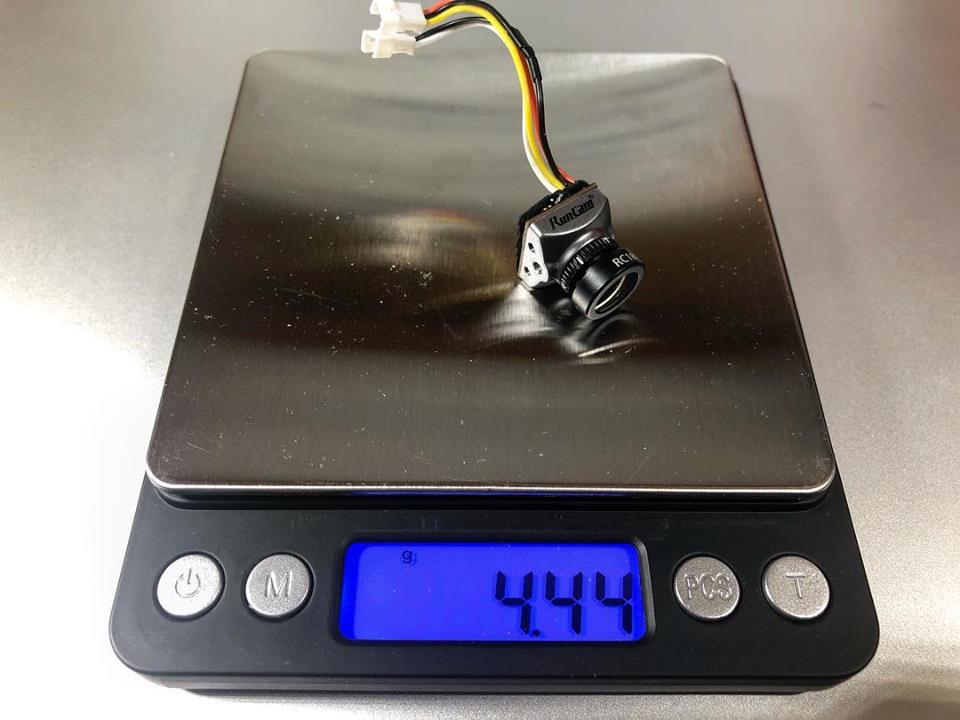

RunCam has released another nano sized camera – Racer Nano. It’s size is only 14x14mm and it weights only 4.4 grams. And the weight is including the cables. Despite beeing so small it is based on the RunCam Racer 2 camera and has the same features plus even more.  You can choose to use joystick board for setting the camera or you can use hand gesture control for setting the main settings. Camera has cables presoldered and there are no sockets for cable plugs.

RunCam Racer Nano comes with an adapter to fit the normal RunCam Racer mounts. Available with 1.8mm lens with 160° FOV and 2.1mm lens with 145° FOV.

Sample video

Available @

RunCam: https://shop.runcam.com/runcam-racer-nano/

Banggood: https://www.banggood.com/Runcam-Racer-Nano-CMOS-700TVL-…-1468281.html

Specifications:
Horizontal Resolution: 700TVL
Lens: 2.1mm (M8) FOV 145° / 1.8mm (M8) FOV160°
Screen Format: 4:3 / 16:9 Switchable
Signal System: NTSC / PAL Switchable
Mirror System: Available
Integrated OSD: Yes
One touch Scene Setting: Personal / Lightrax / Darkness
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Min. illumination: 0.01Lux@1.2F
WDR: Super WDR
Day/Night: Color
Menu Control: Gesture Control / Joystick Control
Power: DC 3.35.5V
Working Current: 120mA@5V / 130mA@3.3V
Housing Material: ABS
Net Weight: 4.4 grams (with wires), 3.5 grams (without wires)
Dimensions: L14*W14*H16mm
