Eachine Stack-X F4 FC VTX 4in1 ESC 1080P DVR and Cam in one
Eachine has listed an innovative product – Eachine Stack-X. It is trully all-in-one multirotor stack – includes F4 Flight controller with OSD and current sensor, 4in1 35A BLHeli_s ESC, VTX, CMOS FPV Camera and FullHD 60Fps video feed recorder. This means you have only to solder motor lead, plug the battery and you are good to fly with full stack ready!
Other features: Uses fast ICM-20608 gyro via SPI bus, supports 3-6S batteries, OSD is controlled by Betaflight, VTX is controllable also from Betaflight and manual buttons. HD video recorrding can be started /stopped via transmitter switch.

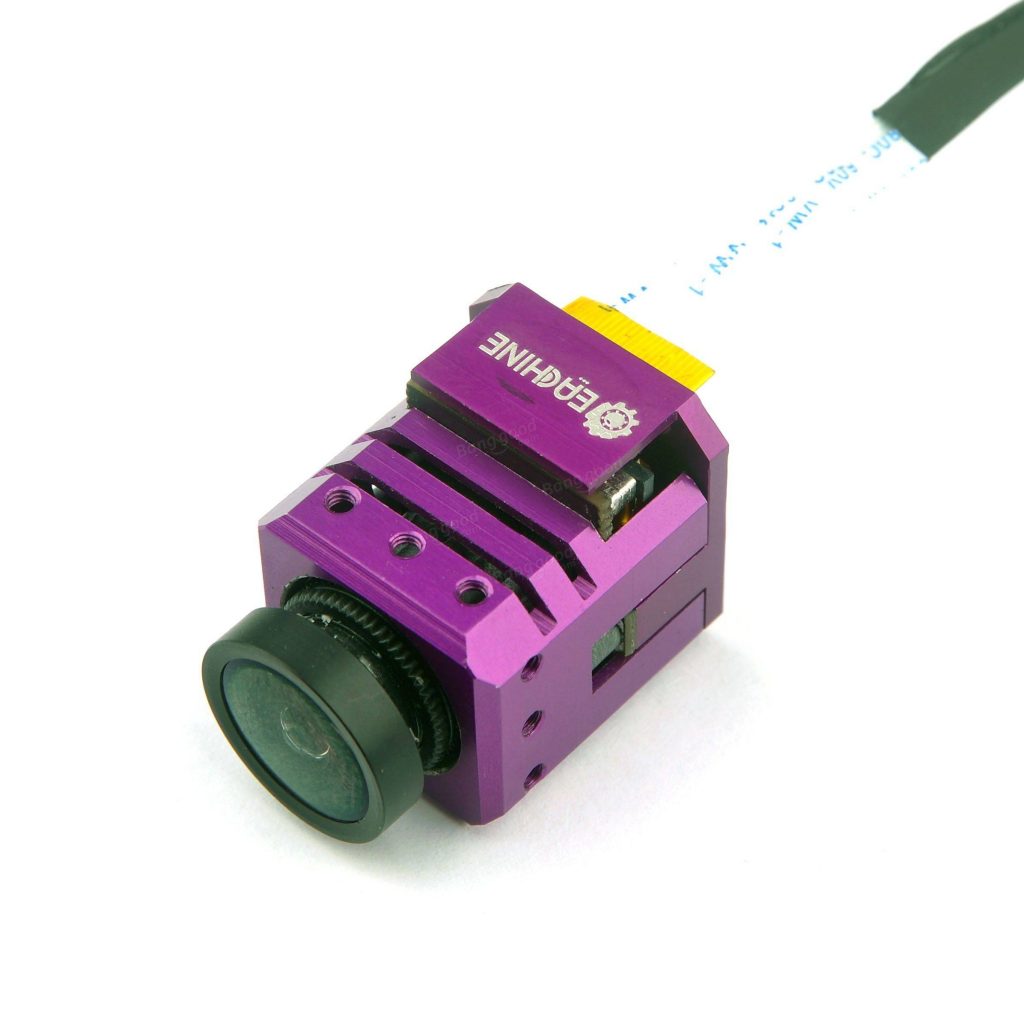

Camera size is L32mm*W22mm*H24mm, width is similar to Runcam\Foxeer mini camera. The total weight of the stac and camera is only 24g!
It would be interesting to test how low is the FPV camera latency and how good is the HD video recorder. But for shure it looks promising.
Stack-X ESC | Operating voltage | 2-6S Lipo |
FC power | Integrated | |
Maximum continuous operating current | 4*35A | |
Maximum instantaneous operating current | 4*40A | |
Oneshort125 / Multishot42 / Dshot150 / 300 / 600 | Support | |
BlheliSuite configurable | Support | |
Firmware version | BLHELI_S Dshot 16.5 J_H_xx firmware | |
Board size | 36*36mm | |
weight | 13g | |
Stack-X F4 | MCU | STM32F405 32-bit processor at 168MHz |
MPU | ICM20608 connected via SPI | |
Firmware version | Betaflight 3.2 FISHDRONEF4 | |
VTX control | Set in Betaflight GUI CLI command or OSD | |
VTX power | 50MW/200MW Switchable in CLI Command | |
Channels | 48ch | |
OSD firmware | Betaflight OSD | |
Operating voltage | 2-6S Lipo (Power from ESC) | |
Frsky smartport | UART1 | |
SBUS input | UART3 | |
Board size | 36*36mm | |
Weight | 7g | |
Stack-X DVR | Camera focal length | 3mm |
Camera lens angle | H:120 degree V: 90 degree | |
Camera lens screw size | M12 | |
Camera sensor | 1/3 Inch CMOS | |
Camera size | L32mm*W22mm*H24mm | |
DVR records effective pixel | 1920(H)x1080(V) | |
Analog video output effective pixel | 640(H)x480(V) | |
DVR records frame rate | 60fps | |
DVR compress format | MOV | |
DVR size | L36mm*W36mm*H5mm | |
Video format | NTSC or PAL Switchable | |
Working voltage | DC 5V | |
Total weight(include camera) | 24g |
Can be purchased @ Banggood: https://www.banggood.com/Eachine-Stack-X-F4-Flytower-F4-Flight-Controller-Built-in-VTX-OSD-1080P-DVR-4-In-1-35A-Dshot600-ESC-p-1210911.html
- STM32F405 MCU Runs Betaflight 3.2.0 firmware.
- Use ICM-20608 as Acc & Gyro over SPI Bus.
- Serial or PPM signal input.
- STM32 control Betalfight OSD Over SPI in DMA Mode– configure by Betaflight GUI.
- Integrated 5.8G 48CH VTX power switchable – 50mw / 200mw switchable.
- STM32 control VTX Band / Channel / Power -Set in Betaflight GUI in CLI Command.
- BLheli_S new firmware 4in1 35A ESC Dshot600 ready.
- BLHELI pass-through ready.
- 1080P 60 FPS video recorder support AV real time transmit.
- 1080P Digital 120 degree camera with 1/3 CMOS sensor.
- Lower CBVS latency 50ms~80ms.
- Remote control Start / Stop video record via PWM signal.
- 3S-6S power support.
